9DD8 | pdb_00009dd8

Cryo-EM structure of neutralizing human antibody D48 in complex with HSV-1 glycoprotein B trimer gB-Ecto.516P


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.08 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Prefusion structure, evasion and neutralization of HSV-1 glycoprotein B.

Roark, R.S.Schaub, A.J.Shi, W.Wang, M.Bahna, F.A.Becker, J.E.Biju, A.Chong, S.Du, H.Guo, Y.Hong, H.Katsamba, P.S.Mannepalli, S.M.Olia, A.S.Ou, L.Rubin, S.K.Sabo, Y.Suleiman, M.Wells, M.L.Zhang, B.Cheng, C.Glasgow, A.Ho, D.D.Huang, Y.Pierson, T.C.Rawi, R.Zhou, T.Shapiro, L.Kwong, P.D.

(2025) Nat Microbiol 10: 2966-2980

  • DOI: https://doi.org/10.1038/s41564-025-02153-x
  • Primary Citation of Related Structures:
    9DD6, 9DD7, 9DD8, 9DDA, 9DDC

  • PubMed Abstract:

    Glycoprotein B (gB) refolds between prefusion and postfusion conformations to facilitate herpesvirus entry into host cells. However, the isolation of prefusion-specific neutralizing antibodies, effective against other viral entry machines, has been challenging. Here we describe stabilization of the prefusion gB ectodomain from herpes simplex virus 1 (HSV-1), determine ectodomain structures at 2.9- to 4.1-Å resolution using cryogenic electron microscopy (cryo-EM) and isolate a prefusion-specific gB-neutralizing antibody termed WS.HSV-1.24. Murine immunization with gB stabilized in the prefusion conformation induced high titres of antibodies binding to both prefusion and postfusion gB, but-most notably-without measurable serum neutralization. Accessibility analysis revealed iso-surface exposure, with accessible surfaces on prefusion HSV-1 gB also exposed on postfusion gB. Structural analysis suggested substantial plasticity, with regions that refolded between pre- and postfusion conformations relegated to domain interfaces with limited accessibility; indeed, WS.HSV-1.24 recognized a domain-interface refolding region to facilitate neutralization. We propose that prefusion HSV-1 gB evades neutralization by most antibodies through an iso-surface display that is coupled to structural plasticity.


  • Organizational Affiliation
    • Aaron Diamond AIDS Research Center, Columbia University Vagelos College of Physicians and Surgeons, New York, NY, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

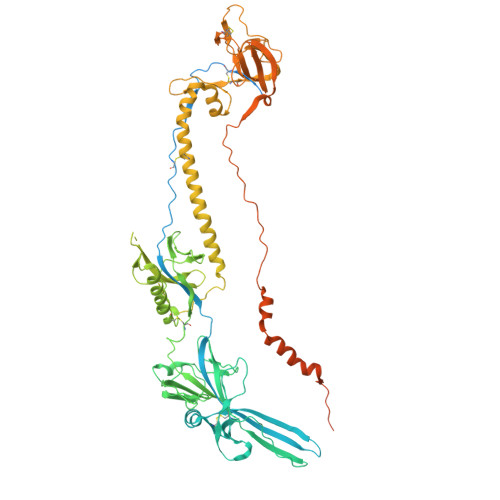

Glycoprotein BA,
D [auth B],
G [auth C]
808Human alphaherpesvirus 1Mutation(s): 1
Gene Names: UL27HHV1gp041
UniProt
Find proteins for A1Z0P7 (Human herpesvirus 1)
Explore A1Z0P7
Go to UniProtKB:  A1Z0P7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA1Z0P7
Glycosylation
Glycosylation Sites: 4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

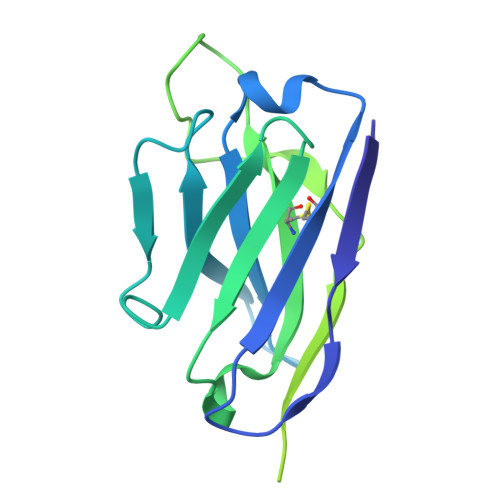

D48 heavy chainB [auth H],
E [auth I],
H [auth J]
238Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

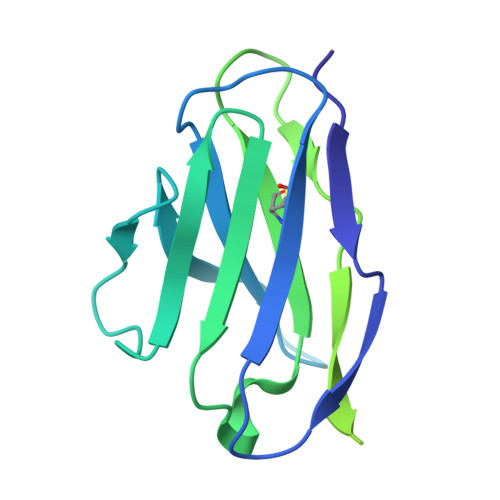

D48 light chainC [auth L],
F [auth M],
I [auth N]
214Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 4
MoleculeChains Length2D Diagram Glycosylation3D Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseJ [auth D],
L [auth F],
N [auth K]
7N-Glycosylation
Glycosylation Resources
GlyTouCan:  G55220VL
GlyCosmos:  G55220VL
GlyGen:  G55220VL
Entity ID: 5
MoleculeChains Length2D Diagram Glycosylation3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseK [auth E],
M [auth G],
O
2N-Glycosylation
Glycosylation Resources
GlyTouCan:  G42666HT
GlyCosmos:  G42666HT
GlyGen:  G42666HT
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.08 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-10
    Type: Initial release
  • Version 1.1: 2025-11-12
    Changes: Data collection, Database references
