8UKI | pdb_00008uki

Crystal structure of 04_A06 Fab


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free:
    0.205 (Depositor), 0.205 (DCC)
  • R-Value Work:
    0.170 (Depositor), 0.170 (DCC)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Profiling of HIV-1 elite neutralizer cohort reveals a CD4bs bnAb for HIV-1 prevention and therapy.

Gieselmann, L.DeLaitsch, A.T.Rohde, M.Gruell, H.Kreer, C.Ercanoglu, M.S.Gristick, H.B.Schommers, P.Ahmadov, E.Radford, C.Mazzolini, A.Zhang, L.West Jr., A.P.Worczinski, J.Momot, A.Reichwein, M.L.Knufer, J.Stumpf, R.Mkhize, N.N.Kaldine, H.Bhebhe, S.Deshpande, S.Giovannoni, F.Stefanutti, E.Benigni, F.Havenar-Daughton, C.Corti, D.Kroidl, A.Adhikari, A.Nanfack, A.J.Ambada, G.E.Duerr, R.Maganga, L.William, W.Ntinginya, N.E.Wolf, T.Geldmacher, C.Hoelscher, M.Lehmann, C.Moore, P.L.Mora, T.Walczak, A.M.Gilbert, P.B.Doria-Rose, N.A.Huang, Y.Bloom, J.D.Seaman, M.S.Bjorkman, P.J.Klein, F.

(2025) Nat Immunol

  • DOI: https://doi.org/10.1038/s41590-025-02286-5
  • Primary Citation of Related Structures:
    8UKI, 8ULR, 8ULS, 8ULT, 8ULU, 9D8V

  • PubMed Abstract:

    Administration of HIV-1 neutralizing antibodies can suppress viremia and prevent infection in vivo. However, clinical use is challenged by envelope diversity and rapid viral escape. Here, we performed single B cell profiling of 32 top HIV-1 elite neutralizers to identify broadly neutralizing antibodies with highest antiviral activity. From 831 expressed monoclonal antibodies, we identified 04_A06, a V H 1-2-encoded broadly neutralizing antibody to the CD4 binding site with remarkable breadth and potency against multiclade pseudovirus panels (geometric mean half-maximal inhibitory concentration = 0.059 µg ml -1 , breadth = 98.5%, 332 strains). Moreover, 04_A06 was not susceptible to classic CD4 binding site escape variants and maintained full viral suppression in HIV-1-infected humanized mice. Structural analyses revealed an unusually long 11-amino-acid heavy chain insertion that facilitates interprotomer contacts with highly conserved residues on the adjacent gp120 protomer. Finally, 04_A06 demonstrated high activity against contemporaneously circulating viruses from the Antibody-Mediated Prevention trials (geometric mean half-maximal inhibitory concentration = 0.082 µg ml -1 , breadth = 98.4%, 191 virus strains), and in silico modeling for 04_A06LS predicted prevention efficacy of >93%. Thus, 04_A06 will provide unique opportunities for effective treatment and prevention of HIV-1 infection.


  • Organizational Affiliation
    • Laboratory of Experimental Immunology, Institute of Virology, Faculty of Medicine and University Hospital Cologne, University of Cologne, Cologne, Germany.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

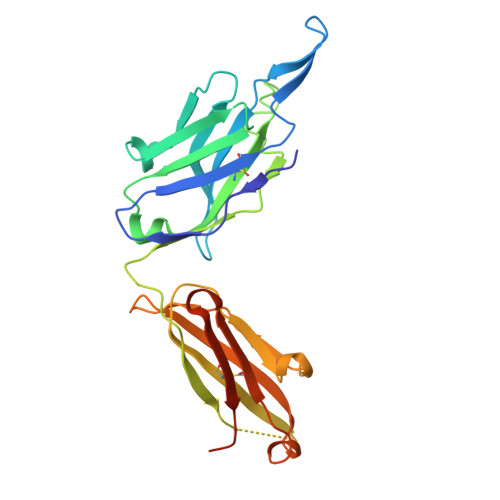

04_A06 Fab Heavy ChainA [auth H]245Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

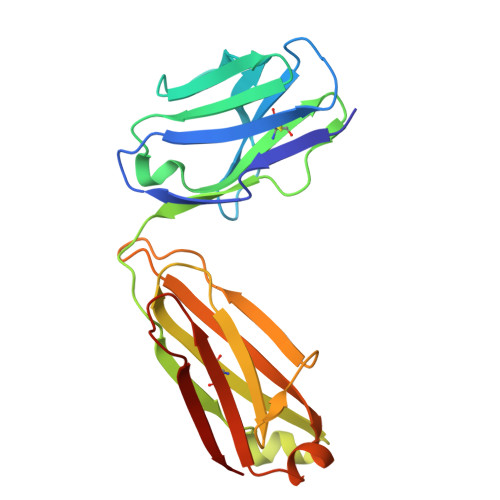

04_A06 Fab Light ChainB [auth L]211Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.75 Å
  • R-Value Free:  0.205 (Depositor), 0.205 (DCC)
  • R-Value Work:  0.170 (Depositor), 0.170 (DCC)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 42.68α = 90
b = 133.28β = 111.26
c = 43.36γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
iMOSFLMdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Bill & Melinda Gates FoundationUnited StatesINV-002143

Revision History  (Full details and data files)

  • Version 1.0: 2025-04-16
    Type: Initial release
  • Version 1.1: 2025-10-29
    Changes: Database references
