9N3A | pdb_00009n3a

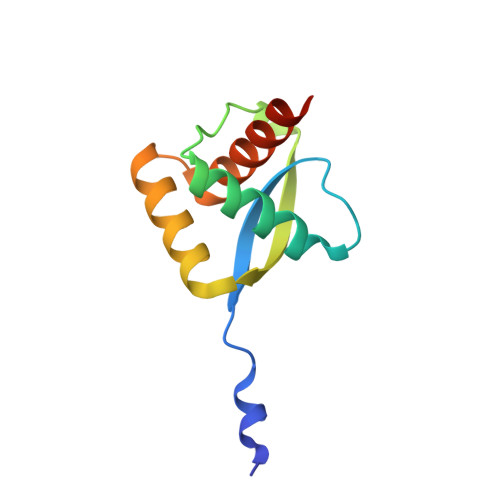

N-Terminal Domain of CRISPR-associated DinG

PDB DOI: https://doi.org/10.2210/pdb9N3A/pdb

Classification: PROTEIN BINDING
Organism(s): Pseudomonas aeruginosa
Expression System: Escherichia coli K-12
Mutation(s): No

Deposited: 2025-01-30 Released: 2026-09-09
Deposition Author(s): Redman, O., Jackson, R.N.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.55 Å
R-Value Free:
0.162 (Depositor), 0.162 (DCC)
R-Value Work:
0.132 (Depositor), 0.132 (DCC)
R-Value Observed:
0.133 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9N3A

This is version 1.0 of the entry. See complete history.

Literature

Locked and loaded: mechanisms of CasDinG recruitment to the type IV-A1 CRISPR effector complex

Kiernan, K.A., Williams, A.A., Redman, O., Jenkins, E., Taylor, D.W., Jackson, R.N.

To be published.

Macromolecule Content

Total Structure Weight: 10.88 kDa
Atom Count: 868
Modeled Residue Count: 93
Deposited Residue Count: 98
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
CRISPR-associated DinG	A	98	Pseudomonas aeruginosa	Mutation(s): 0
UniProt
Find proteins for A0AA82WPF0 (Pseudomonas aeruginosa) Explore A0AA82WPF0 Go to UniProtKB: A0AA82WPF0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0AA82WPF0
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain D [auth A] SDF format, chain C [auth A] SDF format, chain B [auth A] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] MOL2 format, chain B [auth A] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A] mmCIF format, chain B [auth A]	B [auth A], C [auth A], D [auth A], E [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Interactions & Density Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.55 Å
R-Value Free: 0.162 (Depositor), 0.162 (DCC)
R-Value Work: 0.132 (Depositor), 0.132 (DCC)
R-Value Observed: 0.133 (Depositor)

Space Group: I 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 27.669	α = 90
b = 39.304	β = 95.045
c = 83.097	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Coot	model building
PHASER	phasing
Aimless	data scaling
pointless	data scaling
DIALS	data reduction
HKL-3000	data collection

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-09

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM138080

Revision History (Full details and data files)

Version 1.0: 2026-09-09
Type: Initial release
