9JWL | pdb_00009jwl

De novo designed D-allose binding protein based on 1rpj

PDB DOI: https://doi.org/10.2210/pdb9JWL/pdb

Classification: DE NOVO PROTEIN
Organism(s): synthetic construct
Expression System: Escherichia coli B
Mutation(s): No

Deposited: 2024-10-10 Released: 2025-10-15
Deposition Author(s): Wang, X., Liu, Y.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.40 Å
R-Value Free:
0.258 (Depositor), 0.258 (DCC)
R-Value Work:
0.199 (Depositor), 0.199 (DCC)
R-Value Observed:
0.202 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

De novo designed D-allose binding protein based on 1rpj

Wang, X., Liu, Y.

To be published.

Macromolecule Content

Total Structure Weight: 62.33 kDa
Atom Count: 4,426
Modeled Residue Count: 585
Deposited Residue Count: 592
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

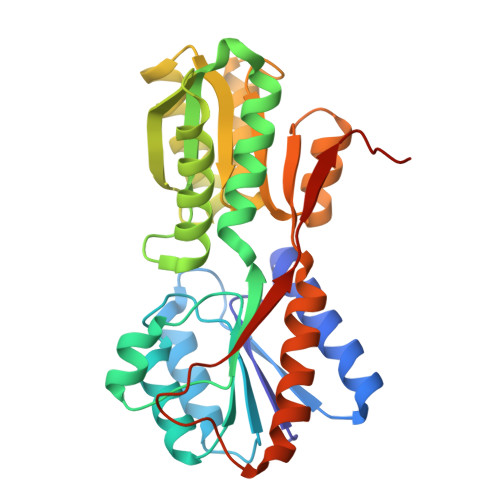

MSD1-holo chainA	A, B	296	synthetic construct	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ALL (Subject of Investigation/LOI) Query on ALL Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth B]	C [auth A], D [auth B]	beta-D-allopyranose C₆ H₁₂ O₆ WQZGKKKJIJFFOK-QZABAPFNSA-N		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.40 Å
R-Value Free: 0.258 (Depositor), 0.258 (DCC)
R-Value Work: 0.199 (Depositor), 0.199 (DCC)
R-Value Observed: 0.202 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 71.712	α = 90
b = 39.68	β = 108.848
c = 108.108	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-10-15

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-10-15
Type: Initial release
