9IG4 | pdb_00009ig4

Crystal structure of Fe/alphaKG-Dependent Decarboxylase TraH in complexes with Mn2+

PDB DOI: https://doi.org/10.2210/pdb9IG4/pdb

Classification: OXIDOREDUCTASE
Organism(s): Penicillium crustosum
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-02-19 Released: 2026-03-04
Deposition Author(s): Zheng, X., Zheng, L., Bange, G.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.10 Å
R-Value Free:
0.236 (Depositor), 0.236 (DCC)
R-Value Work:
0.199 (Depositor), 0.198 (DCC)
R-Value Observed:
0.200 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

A Novel Catalytic Mechanism of Lid Loop-Mediated Proton Transfer Revealed in the Fe/alpha-KG-Dependent Decarboxylase TraH

Zheng, X., Zheng, L., Bange, G.

To be published.

Macromolecule Content

Total Structure Weight: 75.2 kDa
Atom Count: 4,702
Modeled Residue Count: 564
Deposited Residue Count: 654
Unique protein chains: 1

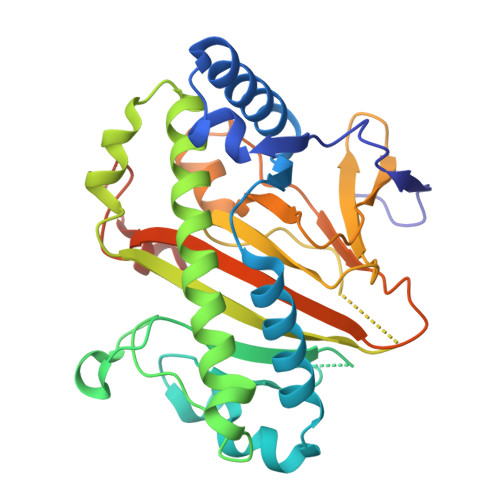

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
2-oxoglutarate-dependent dioxygenase traH	A, B	327	Penicillium crustosum	Mutation(s): 0 Gene Names: traH EC: 1.14
UniProt
Find proteins for A0A481WQ18 (Penicillium crustosum) Explore A0A481WQ18 Go to UniProtKB: A0A481WQ18
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A481WQ18
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MN (Subject of Investigation/LOI) Query on MN Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth B]	C [auth A], D [auth B]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.10 Å
R-Value Free: 0.236 (Depositor), 0.236 (DCC)
R-Value Work: 0.199 (Depositor), 0.198 (DCC)
R-Value Observed: 0.200 (Depositor)

Space Group: P 4₃ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 77.21	α = 90
b = 77.21	β = 90
c = 223.55	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-03-04

Deposition Author(s):

Funding Organization	Location	Grant Number
German Research Foundation (DFG)	Germany	--

Revision History (Full details and data files)

Version 1.0: 2026-03-04
Type: Initial release
