9H9N | pdb_00009h9n

Complex 4 (BODY) 30S-GE81112 (weak residual tRNA)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

A binding site for the antibiotic GE81112 in the ribosomal mRNA channel.

Schedlbauer, A.Han, X.van Bakel, W.Kaminishi, T.Ochoa-Lizarralde, B.Iturrioz, I.Capuni, R.Parry, R.Zegarra, R.Gil-Carton, D.Lopez-Alonso, J.P.Barragan Sanz, K.Brandi, L.Gualerzi, C.O.Fucini, P.Connell, S.R.

(2024) bioRxiv

  • DOI: https://doi.org/10.1101/2024.09.26.614503
  • Primary Citation of Related Structures:
    9H8G, 9H9H, 9H9I, 9H9J, 9H9K, 9H9L, 9H9M, 9H9N

  • PubMed Abstract:

    The initiation phase is the rate-limiting step of protein synthesis (translation) and is finely regulated, making it an important drug target. In bacteria, initiation is guided by three initiation factors and involves positioning the start site on the messenger RNA within the P-site on the small ribosomal subunit (30S), where it is decoded by the initiator tRNA. This process can be efficiently inhibited by GE81112, a natural hydrophilic, noncyclic, nonribosomal tetrapeptide. It is found in nature in three structural variants (A, B and B1 with molecular masses of 643-658 Da). Previous biochemical and structural characterisation of GE81112 indicates that the primary mechanism of action of this antibiotic is to (1) prevent the initiator tRNA from binding correctly to the P-site and (2) block conformational rearrangements in initiation factor IF3, resulting in an unlocked 30S pre/C state. In this study, using cryoEM, we have determined the binding site of GE81112 in initiation complexes (3.2-3.7Å) and on empty ribosomes (2.09 Å). This binding site is within the mRNA channel (E-site) but remote from the binding site of the initiation factors and initiator tRNA. This suggests that it acts allosterically to prevent the initiator tRNA from being locked into place. The binding mode is consistent with previous biochemical studies and recent work identifying the key pharmacophores of GE81112.


  • Organizational Affiliation
    • Center for Cooperative Research in Biosciences (CIC bioGUNE), Basque Research and Technology Alliance (BRTA), Bizkaia Technology Park, Building 801A, 48160 Derio, Spain.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS4B [auth D]206Escherichia coliMutation(s): 0
Gene Names: rpsDramAb3296JW3258
UniProt
Find proteins for P0A7V8 (Escherichia coli (strain K12))
Explore P0A7V8
Go to UniProtKB:  P0A7V8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

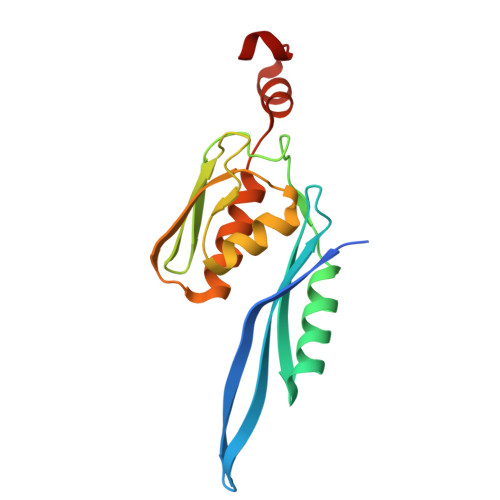

Small ribosomal subunit protein uS5C [auth E]167Escherichia coliMutation(s): 0
Gene Names: rpsEspcb3303JW3265
UniProt
Find proteins for P0A7W1 (Escherichia coli (strain K12))
Explore P0A7W1
Go to UniProtKB:  P0A7W1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7W1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

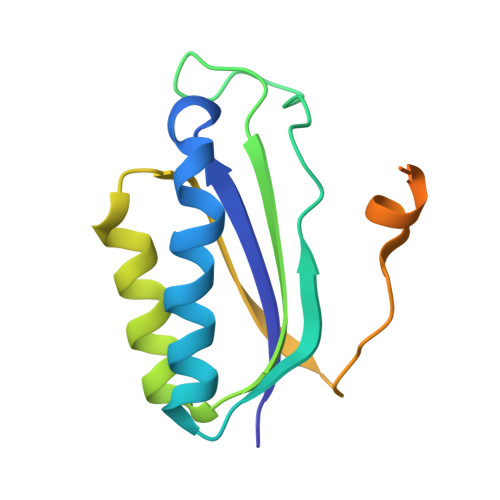

Small ribosomal subunit protein bS6, fully modified isoformD [auth F]135Escherichia coliMutation(s): 0
Gene Names: rpsFb4200JW4158
UniProt
Find proteins for P02358 (Escherichia coli (strain K12))
Explore P02358
Go to UniProtKB:  P02358
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02358
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

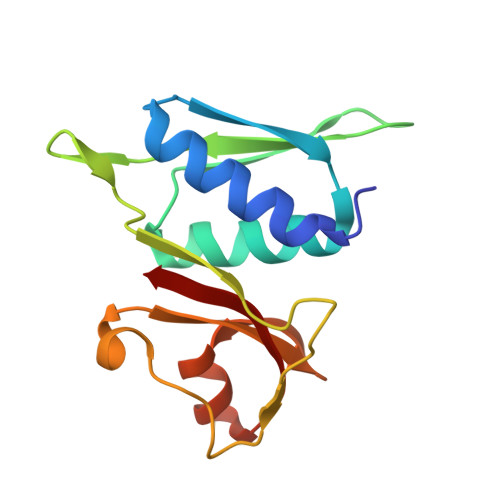

Small ribosomal subunit protein uS8E [auth H]130Escherichia coliMutation(s): 0
Gene Names: rpsHb3306JW3268
UniProt
Find proteins for P0A7W7 (Escherichia coli (strain K12))
Explore P0A7W7
Go to UniProtKB:  P0A7W7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7W7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

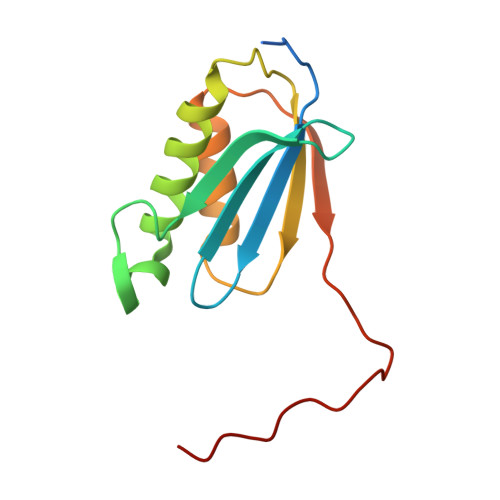

Small ribosomal subunit protein uS11F [auth K]129Escherichia coliMutation(s): 0
Gene Names: rpsKb3297JW3259
UniProt
Find proteins for P0A7R9 (Escherichia coli (strain K12))
Explore P0A7R9
Go to UniProtKB:  P0A7R9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7R9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

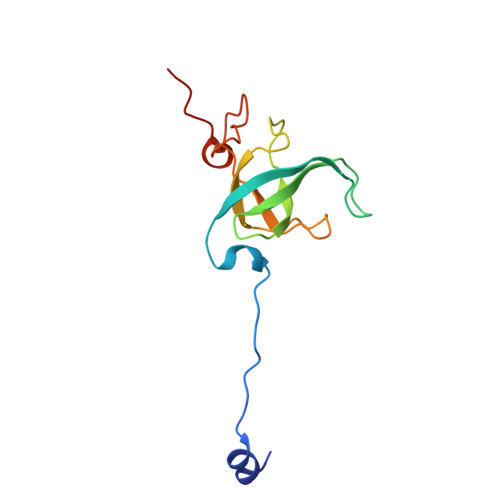

Small ribosomal subunit protein uS12G [auth L]124Escherichia coliMutation(s): 0
Gene Names: rpsLstrAb3342JW3304
UniProt
Find proteins for P0A7S3 (Escherichia coli (strain K12))
Explore P0A7S3
Go to UniProtKB:  P0A7S3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7S3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS15H [auth O]89Escherichia coliMutation(s): 0
Gene Names: rpsOsecCb3165JW3134
UniProt
Find proteins for P0ADZ4 (Escherichia coli (strain K12))
Explore P0ADZ4
Go to UniProtKB:  P0ADZ4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADZ4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

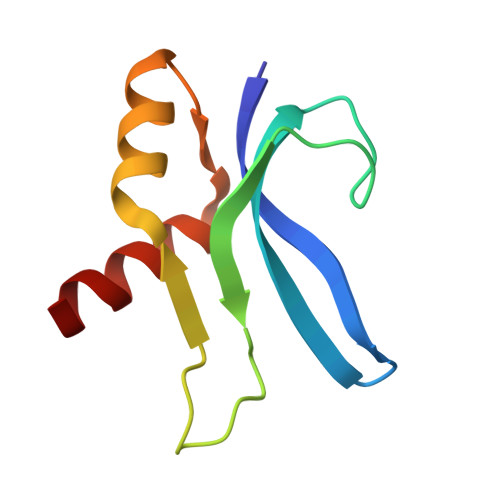

Small ribosomal subunit protein bS16I [auth P]82Escherichia coliMutation(s): 0
Gene Names: rpsPb2609JW2590
UniProt
Find proteins for P0A7T3 (Escherichia coli (strain K12))
Explore P0A7T3
Go to UniProtKB:  P0A7T3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7T3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS17J [auth Q]84Escherichia coliMutation(s): 0
Gene Names: rpsQneaAb3311JW3273
UniProt
Find proteins for P0AG63 (Escherichia coli (strain K12))
Explore P0AG63
Go to UniProtKB:  P0AG63
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG63
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

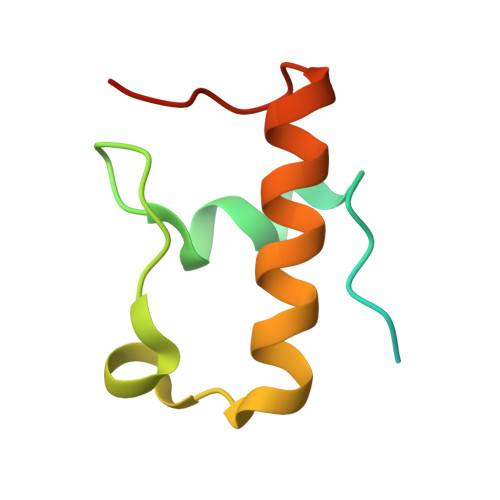

Small ribosomal subunit protein bS18K [auth R]75Escherichia coliMutation(s): 0
Gene Names: rpsRb4202JW4160
UniProt
Find proteins for P0A7T7 (Escherichia coli (strain K12))
Explore P0A7T7
Go to UniProtKB:  P0A7T7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7T7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein bS20L [auth T]87Escherichia coliMutation(s): 0
Gene Names: rpsTb0023JW0022
UniProt
Find proteins for P0A7U7 (Escherichia coli (strain K12))
Explore P0A7U7
Go to UniProtKB:  P0A7U7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7U7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein bS21M [auth U]71Escherichia coliMutation(s): 0
Gene Names: rpsUb3065JW3037
UniProt
Find proteins for P68679 (Escherichia coli (strain K12))
Explore P68679
Go to UniProtKB:  P68679
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68679
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains LengthOrganismImage

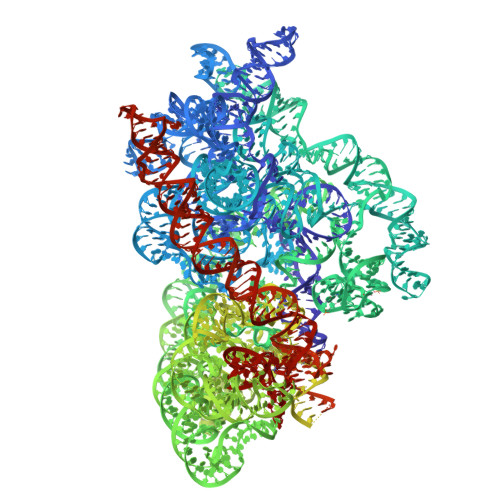

16S RNA (1078-MER)1,541Escherichia coli
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1IC4 (Subject of Investigation/LOI)
Query on A1IC4

Download Ideal Coordinates CCD File
N [auth A](2S,3S)-2-[[(2S)-2-[[(2S,4S)-5-aminocarbonyloxy-4-oxidanyl-2-[[(2S,3R)-3-oxidanylpiperidin-2-yl]carbonylamino]pentanoyl]amino]-3-(1H-imidazol-4-yl)propanoyl]amino]-3-(2-chloranyl-1H-imidazol-4-yl)-3-oxidanyl-propanoic acid
C24 H34 Cl N9 O10
MPRVLYUMDIXCGD-XYYQMEIKSA-N
K
Query on K

Download Ideal Coordinates CCD File
FD [auth A]
GD [auth A]
HD [auth A]
ID [auth A]
JD [auth A]
FD [auth A],
GD [auth A],
HD [auth A],
ID [auth A],
JD [auth A],
KD [auth A],
LD [auth A],
MD [auth A],
ND [auth A],
OD [auth A],
PD [auth A]
POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
AA [auth A]
AB [auth A]
AC [auth A]
AD [auth A]
BA [auth A]
AA [auth A],
AB [auth A],
AC [auth A],
AD [auth A],
BA [auth A],
BB [auth A],
BC [auth A],
BD [auth A],
CA [auth A],
CB [auth A],
CC [auth A],
CD [auth A],
DA [auth A],
DB [auth A],
DC [auth A],
DD [auth A],
EA [auth A],
EB [auth A],
EC [auth A],
ED [auth A],
FA [auth A],
FB [auth A],
FC [auth A],
GA [auth A],
GB [auth A],
GC [auth A],
HA [auth A],
HB [auth A],
HC [auth A],
IA [auth A],
IB [auth A],
IC [auth A],
JA [auth A],
JB [auth A],
JC [auth A],
KA [auth A],
KB [auth A],
KC [auth A],
LA [auth A],
LB [auth A],
LC [auth A],
MA [auth A],
MB [auth A],
MC [auth A],
NA [auth A],
NB [auth A],
NC [auth A],
O [auth A],
OA [auth A],
OB [auth A],
OC [auth A],
P [auth A],
PA [auth A],
PB [auth A],
PC [auth A],
Q [auth A],
QA [auth A],
QB [auth A],
QC [auth A],
R [auth A],
RA [auth A],
RB [auth A],
RC [auth A],
S [auth A],
SA [auth A],
SB [auth A],
SC [auth A],
T [auth A],
TA [auth A],
TB [auth A],
TC [auth A],
U [auth A],
UA [auth A],
UB [auth A],
UC [auth A],
V [auth A],
VA [auth A],
VB [auth A],
VC [auth A],
W [auth A],
WA [auth A],
WB [auth A],
WC [auth A],
X [auth A],
XA [auth A],
XB [auth A],
XC [auth A],
Y [auth A],
YA [auth A],
YB [auth A],
YC [auth A],
Z [auth A],
ZA [auth A],
ZB [auth A],
ZC [auth A]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONRELION
MODEL REFINEMENTISOLDE
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministerio de Ciencia e Innovacion (MCIN)SpainPID2021-122705OB-I00

Revision History  (Full details and data files)

  • Version 1.0: 2025-08-06
    Type: Initial release
