9D9H | pdb_00009d9h

Human Hsp90b nucleotide binding domain in complex with BRI2311

• PDB DOI: https://doi.org/10.2210/pdb9D9H/pdb

• Classification: CHAPERONE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2024-08-21 Released: 2025-09-10
• Deposition Author(s): Kuntz, D.A., Prive, G.G.
• Funding Organization(s): Canadian Institutes of Health Research (CIHR)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.96 Å
• R-Value Free:
  0.208 (Depositor), 0.210 (DCC)
• R-Value Work:
  0.163 (Depositor), 0.165 (DCC)
• R-Value Observed:
  0.165 (Depositor)

Starting Model: experimental

Literature

Final Title 'To Be Determined'

Kuntz, D.A., Prive, G.G.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: homology

Macromolecule Content

• Total Structure Weight: 26.02 kDa
• Atom Count: 2,048
• Modeled Residue Count: 211
• Deposited Residue Count: 224
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

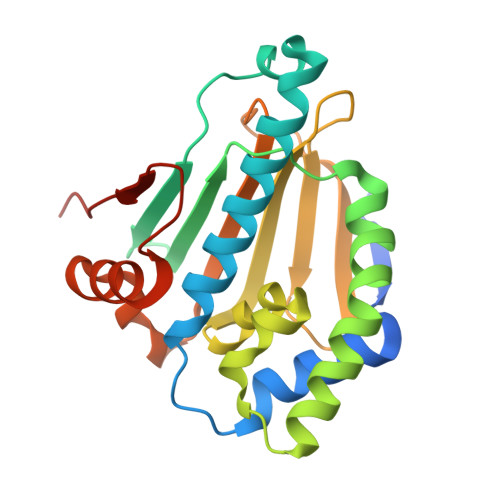

Heat shock protein HSP 90-beta	A	224	Homo sapiens	Mutation(s): 0  Gene Names: HSP90AB1, HSP90B, HSPC2, HSPC3, HSPCB
UniProt & NIH Common Fund Data Resources
Find proteins for P08238 (Homo sapiens) Explore P08238  Go to UniProtKB:  P08238
PHAROS:  P08238 GTEx:  ENSG00000096384

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1A26 (Subject of Investigation/LOI)	B [auth A]	(1P)-3-amino-6-[({1-[(2S)-2-(2,4-difluorophenyl)-2-hydroxy-3-(1H-1,2,4-triazol-1-yl)propyl]piperidin-4-yl}amino)methyl]-1-(4-phenyl-3,4-dihydro-2H-1,4-benzoxazin-6-yl)thieno[2,3-b]pyrazin-2(1H)-one C37 H37 F2 N9 O3 S PRCZCNBGHGABSD-QNGWXLTQSA-N
CL	C [auth A], D [auth A], E [auth A], F [auth A], G [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.96 Å
• R-Value Free:  0.208 (Depositor), 0.210 (DCC)
• R-Value Work:  0.163 (Depositor), 0.165 (DCC)
• R-Value Observed: 0.165 (Depositor)

Space Group: I 2 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 67.348	α = 90
b = 89.841	β = 90
c = 97.315	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
CrysalisPro	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-09-10
Deposition Author(s): Kuntz, D.A., Prive, G.G.

---

Funding Organization	Location	Grant Number
Canadian Institutes of Health Research (CIHR)	Canada	--

Revision History

• Version 1.0: 2025-09-10
  Type: Initial release
