9BC0 | pdb_00009bc0

SARS-CoV-2 Mpro in complex with compound 18r inhibitor

• PDB DOI: https://doi.org/10.2210/pdb9BC0/pdb

• Classification: VIRAL PROTEIN, Hydrolase
• Organism(s): Severe acute respiratory syndrome coronavirus 2
• Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
• Mutation(s): No


• Deposited: 2024-04-07 Released: 2025-04-16
• Deposition Author(s): Afsar, M., Bury, P., Olsen, S.K.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), Cancer Prevention and Research Institute of Texas (CPRIT)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.08 Å
• R-Value Free:
  0.271 (Depositor), 0.271 (DCC)
• R-Value Work:
  0.233 (Depositor), 0.234 (DCC)
• R-Value Observed:
  0.237 (Depositor)

Starting Model: experimental

Literature

SARS-CoV-2 Mpro in complex with compound 18r inhibitor

Afsar, M., Bury, P., Olsen, S.K.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 34.34 kDa
• Atom Count: 2,388
• Modeled Residue Count: 305
• Deposited Residue Count: 306
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

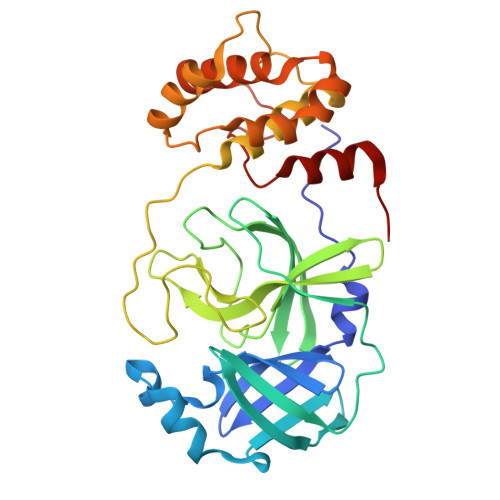

3C-like proteinase nsp5	A	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0  Gene Names: rep, 1a-1b EC: 3.4.22.69
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1  Go to UniProtKB:  P0DTD1

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1ALX (Subject of Investigation/LOI)	B [auth A]	3-chloro-N-[(2R)-1-({(1Z,2S)-1-imino-3-[(3R)-2-oxopyrrolidin-3-yl]propan-2-yl}amino)-4-methyl-1-oxopentan-2-yl]-4'-methoxy[1,1'-biphenyl]-4-carboxamide C27 H33 Cl N4 O4 IAKAOWBZTOTWKP-WPLACLJPSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.08 Å
• R-Value Free:  0.271 (Depositor), 0.271 (DCC)
• R-Value Work:  0.233 (Depositor), 0.234 (DCC)
• R-Value Observed: 0.237 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 115.527	α = 90
b = 53.527	β = 100.93
c = 45.676	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-04-16
Deposition Author(s): Afsar, M., Bury, P., Olsen, S.K.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01GM115568
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01GM128731
Cancer Prevention and Research Institute of Texas (CPRIT)	United States	RR200030

Revision History

• Version 1.0: 2025-04-16
  Type: Initial release

• Version 1.1: 2025-05-14
  Changes: Derived calculations
