28SZ | pdb_000028sz

Structure of mutated ASBT homologue from Leptospira biflexa in outward-facing form with Deoxycholate

• PDB DOI: https://doi.org/10.2210/pdb28SZ/pdb

• Classification: MEMBRANE PROTEIN
• Organism(s): Leptospira biflexa
• Expression System: Escherichia coli
• Mutation(s): Yes


• Deposited: 2026-02-17 Released: 2026-07-22
• Deposition Author(s): Li, C., Cameron, A.D.
• Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC), National Institutes of Health/Office of the Director

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.52 Å
• R-Value Free:
  0.287 (Depositor), 0.284 (DCC)
• R-Value Work:
  0.275 (Depositor), 0.270 (DCC)
• R-Value Observed:
  0.275 (Depositor)

Starting Model: experimental

Literature

Structure and Mechanism of a bacterial homologue of a bile acid transporter

Li, C., Grob, A., Repa, L., Huxley, O., Brotherton, D.H., Becker, P., Dadzie, R., Beckstein, O., Cameron, A.D.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 33.73 kDa
• Atom Count: 2,271
• Modeled Residue Count: 286
• Deposited Residue Count: 300
• Unique protein chains: 1

Macromolecules

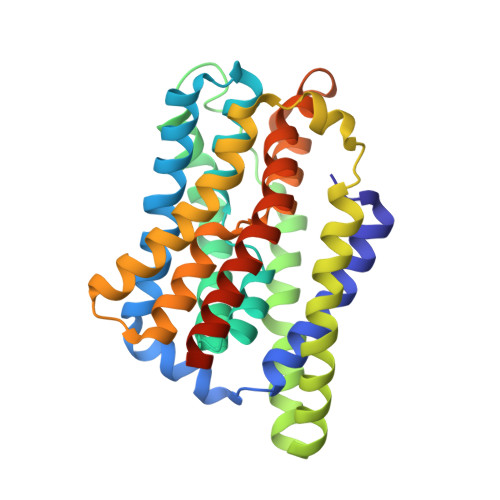

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Putative transporter, sodium/bile acid transporter family protein	A	300	Leptospira biflexa	Mutation(s): 10  Gene Names: LEPBI_I0103
UniProt
Find proteins for B0SJT7 (Leptospira biflexa serovar Patoc (strain Patoc 1 / ATCC 23582 / Paris)) Explore B0SJT7  Go to UniProtKB:  B0SJT7

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
DXC (Subject of Investigation/LOI)	D [auth A]	(3ALPHA,5BETA,12ALPHA)-3,12-DIHYDROXYCHOLAN-24-OIC ACID C24 H40 O4 KXGVEGMKQFWNSR-LLQZFEROSA-N
NA (Subject of Investigation/LOI)	B [auth A], C [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.52 Å
• R-Value Free:  0.287 (Depositor), 0.284 (DCC)
• R-Value Work:  0.275 (Depositor), 0.270 (DCC)
• R-Value Observed: 0.275 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 55.2	α = 90
b = 75.118	β = 90
c = 94.985	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
DIALS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-07-22
Deposition Author(s): Li, C., Cameron, A.D.

---

Funding Organization	Location	Grant Number
Biotechnology and Biological Sciences Research Council (BBSRC)	United Kingdom	BB/M01116X/1
National Institutes of Health/Office of the Director	United States	R01GM118772

Revision History

• Version 1.0: 2026-07-22
  Type: Initial release
