24SQ | pdb_000024sq

Human HRAS WT (GDP-bound) in complex with macrocyclic peptide inhibitor AP6296

PDB DOI: https://doi.org/10.2210/pdb24SQ/pdb

Classification: SIGNALING PROTEIN/INHIBITOR
Organism(s): Homo sapiens, synthetic construct
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2026-03-19 Released: 2026-09-16
Deposition Author(s): Yamano, T., Kage, M., Fukami, T.A., Tanada, M., Irie, M., Torizawa, T.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.08 Å
R-Value Free:
0.206 (Depositor), 0.205 (DCC)
R-Value Work:
0.188 (Depositor), 0.188 (DCC)
R-Value Observed:
0.189 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Exploiting Bridged Conformations for Precise Molecular Recognition in the Design of KRAS-Selective, Orally Available Macrocyclic Peptides

Kage, M., Kawada, H., Takano, K., Matsuo, A., Murata, Y., Hashimoto, S., Tamiya, M., Kotake, T., Kuramoto, S., Yamano, T., Irie, M., Ohara, K., Sakurai, Y., Nomura, K., Morita, Y., Hayashi, R., Wakamiya, Y., Takei, K., Tanaka, H., Nishimura, Y., Iikura, H., Shiraishi, T., Tanada, M.

(2026) J Am Chem Soc

DOI: https://doi.org/10.1021/jacs.6c14212

Macromolecule Content

Total Structure Weight: 43.06 kDa
Atom Count: 3,495
Modeled Residue Count: 361
Deposited Residue Count: 366
Unique protein chains: 2

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

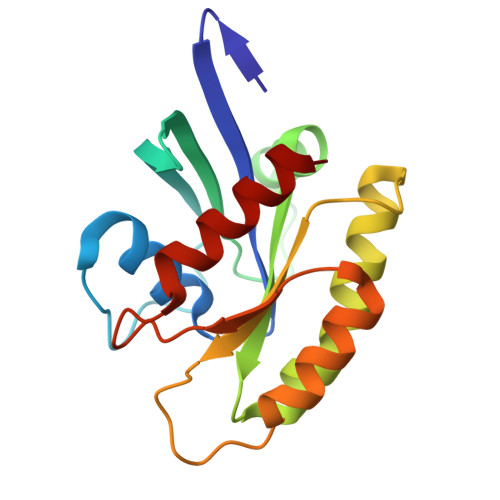

GTPase HRas, N-terminally processed	A, B	171	Homo sapiens	Mutation(s): 0 Gene Names: HRAS, HRAS1 EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01112 (Homo sapiens) Explore P01112 Go to UniProtKB: P01112
PHAROS: P01112 GTEx: ENSG00000174775
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P01112
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

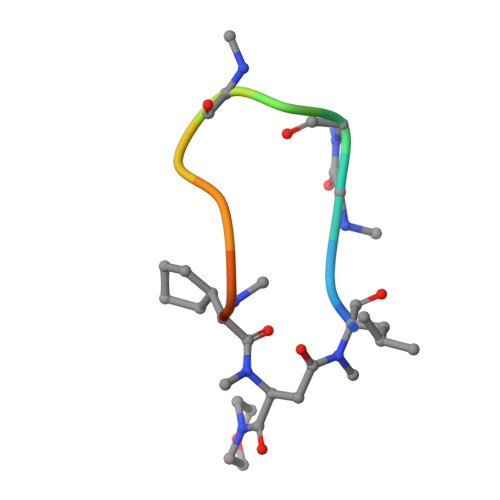

AP6296	C [auth I], D [auth J]	12	synthetic construct	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GDP (Subject of Investigation/LOI) Query on GDP Download:Ideal Coordinates CCD File SDF format, chain Q [auth B] SDF format, chain E [auth A] MOL2 format, chain Q [auth B] MOL2 format, chain E [auth A] mmCIF format, chain Q [auth B] mmCIF format, chain E [auth A]	E [auth A], Q [auth B]	GUANOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₁ P₂ QGWNDRXFNXRZMB-UUOKFMHZSA-N		Interactions Focus chain E [auth A] Focus chain Q [auth B] Interactions & Density Focus chain E [auth A] Focus chain Q [auth B]
EDO Query on EDO Download:Ideal Coordinates CCD File SDF format, chain T [auth B] SDF format, chain S [auth B] SDF format, chain R [auth B] SDF format, chain P [auth A] SDF format, chain O [auth A] SDF format, chain M [auth A] SDF format, chain L [auth A] SDF format, chain K [auth A] SDF format, chain J [auth A] SDF format, chain I [auth A] SDF format, chain H [auth A] SDF format, chain G [auth A] SDF format, chain F [auth A] MOL2 format, chain T [auth B] MOL2 format, chain S [auth B] MOL2 format, chain R [auth B] MOL2 format, chain P [auth A] MOL2 format, chain O [auth A] MOL2 format, chain M [auth A] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] MOL2 format, chain J [auth A] MOL2 format, chain I [auth A] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] mmCIF format, chain T [auth B] mmCIF format, chain S [auth B] mmCIF format, chain R [auth B] mmCIF format, chain P [auth A] mmCIF format, chain O [auth A] mmCIF format, chain M [auth A] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A] mmCIF format, chain J [auth A] mmCIF format, chain I [auth A] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A]	F [auth A] G [auth A] H [auth A] I [auth A] J [auth A] F [auth A], G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A], M [auth A], O [auth A], P [auth A], R [auth B], S [auth B], T [auth B]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B] Interactions & Density Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain R [auth B] Focus chain S [auth B] Focus chain T [auth B]
MG (Subject of Investigation/LOI) Query on MG Download:Ideal Coordinates CCD File SDF format, chain U [auth B] SDF format, chain N [auth A] MOL2 format, chain U [auth B] MOL2 format, chain N [auth A] mmCIF format, chain U [auth B] mmCIF format, chain N [auth A]	N [auth A], U [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain N [auth A] Focus chain U [auth B] Interactions & Density Focus chain N [auth A] Focus chain U [auth B]

Modified Residues 6 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
7VN Query on 7VN	C [auth I], D [auth J]	L-PEPTIDE LINKING	C₈ H₁₅ N O₂		ALA
A1MFM Query on A1MFM	C [auth I], D [auth J]	L-PEPTIDE LINKING	C₁₁ H₁₁ Cl F₃ N O₂		--
A1MFN Query on A1MFN	C [auth I], D [auth J]	L-PEPTIDE LINKING	C₁₃ H₁₉ N O₂		--
AC5 Query on AC5	C [auth I], D [auth J]	PEPTIDE LINKING	C₆ H₁₁ N O₂		--
MLE Query on MLE	C [auth I], D [auth J]	L-PEPTIDE LINKING	C₇ H₁₅ N O₂		LEU
SAR Query on SAR	C [auth I], D [auth J]	PEPTIDE LINKING	C₃ H₇ N O₂		GLY
