9U90 | pdb_00009u90

Crystal structure of KRAS-G12D/E62K mutant in complex with GDP

• PDB DOI: https://doi.org/10.2210/pdb9U90/pdb

• Classification: HYDROLASE
• Organism(s): Homo sapiens
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2025-03-26 Released: 2026-03-25
• Deposition Author(s): Zhang, X.L., Zhang, X.Y., Zhang, Y.Z., Xu, C., Liu, L., Bai, F.
• Funding Organization(s): Other government

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.20 Å
• R-Value Free:
  0.202 (Depositor), 0.202 (DCC)
• R-Value Work:
  0.172 (Depositor), 0.173 (DCC)
• R-Value Observed:
  0.173 (Depositor)

Literature

Molecule Mechanisms of KRAS Secondery Mutation Conferred Resistance of MRTX1133

Zhang, X.L., Zhang, X.Y., Zhang, Y.Z., Bai, F.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 22.1 kDa
• Atom Count: 1,532
• Modeled Residue Count: 169
• Deposited Residue Count: 189
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

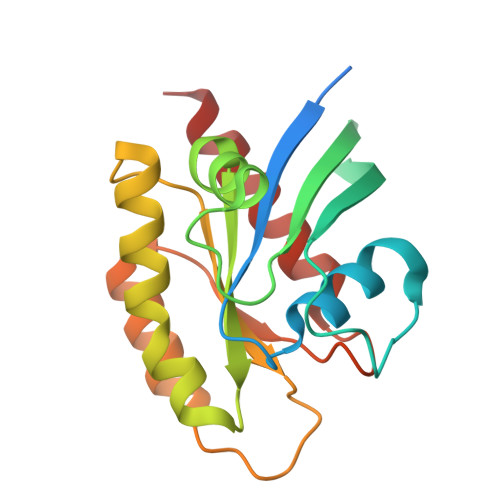

Isoform 2B of GTPase KRas	A	189	Homo sapiens	Mutation(s): 2  Gene Names: KRAS, KRAS2, RASK2 EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens) Go to UniProtKB:  P01116
PHAROS:  P01116 GTEx:  ENSG00000133703

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
GDP (Subject of Investigation/LOI)	B [auth A]	GUANOSINE-5'-DIPHOSPHATE C10 H15 N5 O11 P2 QGWNDRXFNXRZMB-UUOKFMHZSA-N
MG (Subject of Investigation/LOI)	C [auth A], D [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.20 Å
• R-Value Free:  0.202 (Depositor), 0.202 (DCC)
• R-Value Work:  0.172 (Depositor), 0.173 (DCC)
• R-Value Observed: 0.173 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 41.226	α = 90
b = 51.682	β = 90
c = 67.627	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-3000	data scaling
HKL-3000	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-03-25
Deposition Author(s): Zhang, X.L., Zhang, X.Y., Zhang, Y.Z., Xu, C., Liu, L., Bai, F.

---

Funding Organization	Location	Grant Number
Other government	China	24JS2850100

Revision History

• Version 1.0: 2026-03-25
  Type: Initial release
