9TMF | pdb_00009tmf

Structure of the SARS-CoV-2 BA.2.87.1 spike protein ectodomain

PDB DOI: https://doi.org/10.2210/pdb9TMF/pdb
EM Map EMD-56069: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Severe acute respiratory syndrome coronavirus
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2025-12-12 Released: 2026-10-21
Deposition Author(s): Eray, E., Antanasijevic, A.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.90 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9TMF

This is version 1.0 of the entry. See complete history.

Literature

Antigenic landscape of a highly mutated SARS-CoV-2 Spike in ongoing viral evolution

Turelli, P., Eray, E., Raclot, C., Trono, D., Antanasijevic, A.

To be published.

Macromolecule Content

Total Structure Weight: 430.86 kDa
Atom Count: 22,572
Modeled Residue Count: 2,793
Deposited Residue Count: 3,789
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

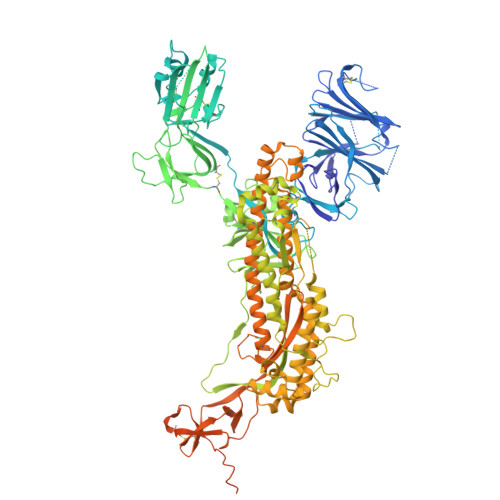

Spike glycoprotein,Fibritin	A, B, C	1,263	Severe acute respiratory syndrome coronavirus	Mutation(s): 36 Gene Names: S, 2, wac
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Find proteins for P10104 (Enterobacteria phage T4) Explore P10104 Go to UniProtKB: P10104
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Groups	P0DTC2 P10104
Glycosylation
Glycosylation Sites: 15	Glycosylation Focus chain A Focus chain B Focus chain C	Go to GlyGen: P0DTC2-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D, F, G, I, J D, F, G, I, J, L	2		N-Glycosylation	Interactions Focus chain D Focus chain F Focus chain G Focus chain I Focus chain J Focus chain L Interactions & Density Focus chain D Focus chain F Focus chain G Focus chain I Focus chain J Focus chain L

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E, H, K	3		N-Glycosylation	Interactions Focus chain E Focus chain H Focus chain K Interactions & Density Focus chain E Focus chain H Focus chain K

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain AA [auth B] SDF format, chain BA [auth B] SDF format, chain CA [auth B] SDF format, chain DA [auth B] SDF format, chain EA [auth B] SDF format, chain FA [auth B] SDF format, chain GA [auth B] SDF format, chain HA [auth B] SDF format, chain IA [auth B] SDF format, chain JA [auth B] SDF format, chain KA [auth C] SDF format, chain LA [auth C] SDF format, chain M [auth A] SDF format, chain MA [auth C] SDF format, chain N [auth A] SDF format, chain NA [auth C] SDF format, chain O [auth A] SDF format, chain OA [auth C] SDF format, chain P [auth A] SDF format, chain PA [auth C] SDF format, chain Q [auth A] SDF format, chain QA [auth C] SDF format, chain R [auth A] SDF format, chain RA [auth C] SDF format, chain S [auth A] SDF format, chain SA [auth C] SDF format, chain T [auth A] SDF format, chain TA [auth C] SDF format, chain U [auth A] SDF format, chain UA [auth C] SDF format, chain V [auth A] SDF format, chain VA [auth C] SDF format, chain W [auth A] SDF format, chain X [auth A] SDF format, chain Y [auth B] SDF format, chain Z [auth B] MOL2 format, chain AA [auth B] MOL2 format, chain BA [auth B] MOL2 format, chain CA [auth B] MOL2 format, chain DA [auth B] MOL2 format, chain EA [auth B] MOL2 format, chain FA [auth B] MOL2 format, chain GA [auth B] MOL2 format, chain HA [auth B] MOL2 format, chain IA [auth B] MOL2 format, chain JA [auth B] MOL2 format, chain KA [auth C] MOL2 format, chain LA [auth C] MOL2 format, chain M [auth A] MOL2 format, chain MA [auth C] MOL2 format, chain N [auth A] MOL2 format, chain NA [auth C] MOL2 format, chain O [auth A] MOL2 format, chain OA [auth C] MOL2 format, chain P [auth A] MOL2 format, chain PA [auth C] MOL2 format, chain Q [auth A] MOL2 format, chain QA [auth C] MOL2 format, chain R [auth A] MOL2 format, chain RA [auth C] MOL2 format, chain S [auth A] MOL2 format, chain SA [auth C] MOL2 format, chain T [auth A] MOL2 format, chain TA [auth C] MOL2 format, chain U [auth A] MOL2 format, chain UA [auth C] MOL2 format, chain V [auth A] MOL2 format, chain VA [auth C] MOL2 format, chain W [auth A] MOL2 format, chain X [auth A] MOL2 format, chain Y [auth B] MOL2 format, chain Z [auth B] mmCIF format, chain AA [auth B] mmCIF format, chain BA [auth B] mmCIF format, chain CA [auth B] mmCIF format, chain DA [auth B] mmCIF format, chain EA [auth B] mmCIF format, chain FA [auth B] mmCIF format, chain GA [auth B] mmCIF format, chain HA [auth B] mmCIF format, chain IA [auth B] mmCIF format, chain JA [auth B] mmCIF format, chain KA [auth C] mmCIF format, chain LA [auth C] mmCIF format, chain M [auth A] mmCIF format, chain MA [auth C] mmCIF format, chain N [auth A] mmCIF format, chain NA [auth C] mmCIF format, chain O [auth A] mmCIF format, chain OA [auth C] mmCIF format, chain P [auth A] mmCIF format, chain PA [auth C] mmCIF format, chain Q [auth A] mmCIF format, chain QA [auth C] mmCIF format, chain R [auth A] mmCIF format, chain RA [auth C] mmCIF format, chain S [auth A] mmCIF format, chain SA [auth C] mmCIF format, chain T [auth A] mmCIF format, chain TA [auth C] mmCIF format, chain U [auth A] mmCIF format, chain UA [auth C] mmCIF format, chain V [auth A] mmCIF format, chain VA [auth C] mmCIF format, chain W [auth A] mmCIF format, chain X [auth A] mmCIF format, chain Y [auth B] mmCIF format, chain Z [auth B]	AA [auth B] BA [auth B] CA [auth B] DA [auth B] EA [auth B] AA [auth B], BA [auth B], CA [auth B], DA [auth B], EA [auth B], FA [auth B], GA [auth B], HA [auth B], IA [auth B], JA [auth B], KA [auth C], LA [auth C], M [auth A], MA [auth C], N [auth A], NA [auth C], O [auth A], OA [auth C], P [auth A], PA [auth C], Q [auth A], QA [auth C], R [auth A], RA [auth C], S [auth A], SA [auth C], T [auth A], TA [auth C], U [auth A], UA [auth C], V [auth A], VA [auth C], W [auth A], X [auth A], Y [auth B], Z [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain AA [auth B] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth C] Focus chain LA [auth C] Focus chain M [auth A] Focus chain MA [auth C] Focus chain N [auth A] Focus chain NA [auth C] Focus chain O [auth A] Focus chain OA [auth C] Focus chain P [auth A] Focus chain PA [auth C] Focus chain Q [auth A] Focus chain QA [auth C] Focus chain R [auth A] Focus chain RA [auth C] Focus chain S [auth A] Focus chain SA [auth C] Focus chain T [auth A] Focus chain TA [auth C] Focus chain U [auth A] Focus chain UA [auth C] Focus chain V [auth A] Focus chain VA [auth C] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth B] Focus chain Z [auth B] Interactions & Density Focus chain AA [auth B] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth C] Focus chain LA [auth C] Focus chain M [auth A] Focus chain MA [auth C] Focus chain N [auth A] Focus chain NA [auth C] Focus chain O [auth A] Focus chain OA [auth C] Focus chain P [auth A] Focus chain PA [auth C] Focus chain Q [auth A] Focus chain QA [auth C] Focus chain R [auth A] Focus chain RA [auth C] Focus chain S [auth A] Focus chain SA [auth C] Focus chain T [auth A] Focus chain TA [auth C] Focus chain U [auth A] Focus chain UA [auth C] Focus chain V [auth A] Focus chain VA [auth C] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth B] Focus chain Z [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.90 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	Coot
MODEL REFINEMENT	RosettaEM
RECONSTRUCTION	RELION	4.0

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-21

Deposition Author(s):

Antanasijevic, A.

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-10-21
Type: Initial release
