9R8B | pdb_00009r8b

CRYSTAL STRUCTURE OF WILD-TYPE PLK1 KINASE DOMAIN IN COMPLEX WITH THIAZOLIDINONE INHIBITOR COMPOUND 1 AND A SELECTIVE DARPIN

• PDB DOI: https://doi.org/10.2210/pdb9R8B/pdb

• Classification: TRANSFERASE
• Organism(s): Homo sapiens
• Expression System: Spodoptera frugiperda, Escherichia coli
• Mutation(s): No


• Deposited: 2025-05-16 Released: 2025-11-26
• Deposition Author(s): Hillig, R.C., Matias, P.M., Bandeiras, T.M., Siemeister, G., Schulze, V.K., Schmitz, A.A., Eberspaecher, U.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free:
  0.238 (Depositor), 0.242 (DCC)
• R-Value Work:
  0.188 (Depositor), 0.196 (DCC)
• R-Value Observed:
  0.191 (Depositor)

Starting Model: experimental

Literature

Polo-like kinase 1–inhibitor co-complex structures via the surface-entropy reduction approach and a DARPin-assisted approach

Eberspaecher, U., Schmitz, A.A., Siemeister, G., Bomer, U., Bandeiras, T.M., Matias, P.M., Schulze, V.K., Hillig, R.C.

(2025) Acta Crystallogr D Biol Crystallogr 81

• DOI: https://doi.org/10.1107/S2059798325009325

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 2 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 108.88 kDa
• Atom Count: 7,196
• Modeled Residue Count: 843
• Deposited Residue Count: 964
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

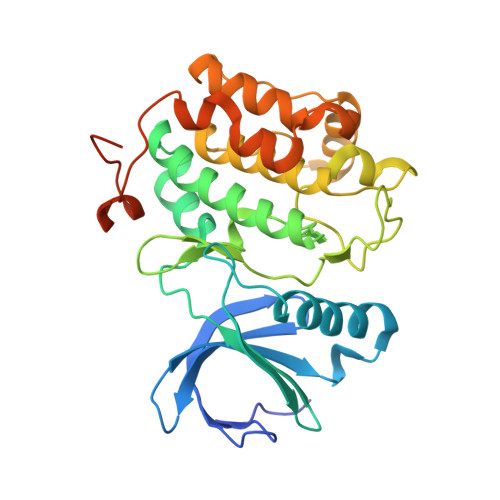

Serine/threonine-protein kinase PLK1	A, B	315	Homo sapiens	Mutation(s): 0  Gene Names: PLK1, PLK EC: 2.7.11.21
UniProt & NIH Common Fund Data Resources
Find proteins for P53350 (Homo sapiens) Explore P53350  Go to UniProtKB:  P53350
PHAROS:  P53350 GTEx:  ENSG00000166851

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

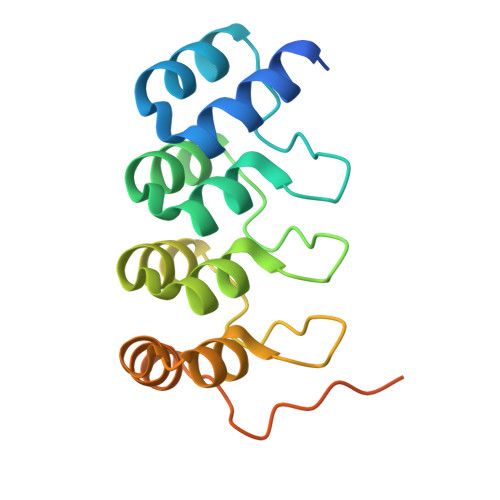

DESIGNED ANKYRIN REPEAT PROTEIN (DARPIN), variant 3H10	C, D	167	Homo sapiens	Mutation(s): 0

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1JCP	E [auth A], H [auth B]	(2~{Z})-2-cyano-2-[3-ethyl-5-[(~{E})-[2-[methyl-(1-methylpiperidin-4-yl)amino]pyridin-4-yl]iminomethyl]-4-oxidanylidene-1,3-thiazol-2-ylidene]-~{N}-[2,2,2-tris(fluoranyl)ethyl]ethanamide C23 H28 F3 N7 O2 S GTQIHYRIVZRZQE-DLTYULCUSA-N
GOL	F [auth A], I [auth B]	GLYCEROL C3 H8 O3 PEDCQBHIVMGVHV-UHFFFAOYSA-N
CL	G [auth B]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free:  0.238 (Depositor), 0.242 (DCC)
• R-Value Work:  0.188 (Depositor), 0.196 (DCC)
• R-Value Observed: 0.191 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 61.072	α = 90
b = 136.899	β = 90
c = 140.729	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
XDS	data reduction
PHASER	phasing
SCALA	data scaling
PDB_EXTRACT	data extraction

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-11-26
Deposition Author(s): Hillig, R.C., Matias, P.M., Bandeiras, T.M., Siemeister, G., Schulze, V.K., Schmitz, A.A., Eberspaecher, U.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-11-26
  Type: Initial release
