9KOW | pdb_00009kow

Crystal structure of RaTG13 RBD complexed with cattle ACE2

• PDB DOI: https://doi.org/10.2210/pdb9KOW/pdb

• Classification: VIRAL PROTEIN/HYDROLASE
• Organism(s): Bos taurus, Bat coronavirus RaTG13
• Expression System: Trichoplusia ni
• Mutation(s): No


• Deposited: 2024-11-21 Released: 2025-11-26
• Deposition Author(s): Lan, J., Wang, C.H.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 3.98 Å
• R-Value Free:
  0.271 (Depositor), 0.270 (DCC)
• R-Value Work:
  0.205 (Depositor), 0.212 (DCC)
• R-Value Observed:
  0.212 (Depositor)

Starting Model: experimental

Literature

Crystal structure of RaTG13 RBD complexed with cattle ACE2

Lan, J., Wang, C.H.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 92.33 kDa
• Atom Count: 6,483
• Modeled Residue Count: 788
• Deposited Residue Count: 790
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

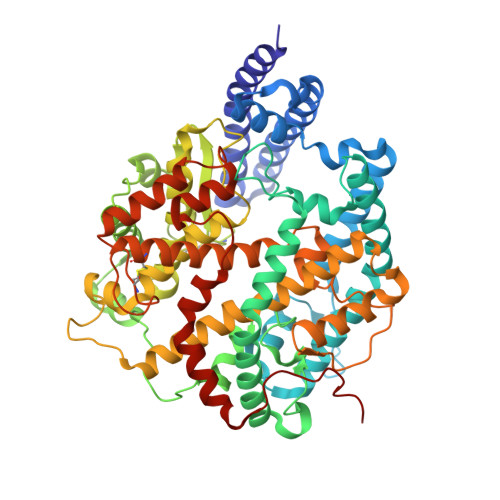

Processed angiotensin-converting enzyme 2	A	596	Bos taurus	Mutation(s): 0  Gene Names: ACE2 EC: 3.4.17 (UniProt), 3.4.17.23 (UniProt)
UniProt
Find proteins for Q58DD0 (Bos taurus) Explore Q58DD0  Go to UniProtKB:  Q58DD0
Glycosylation
Glycosylation Sites: 2

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

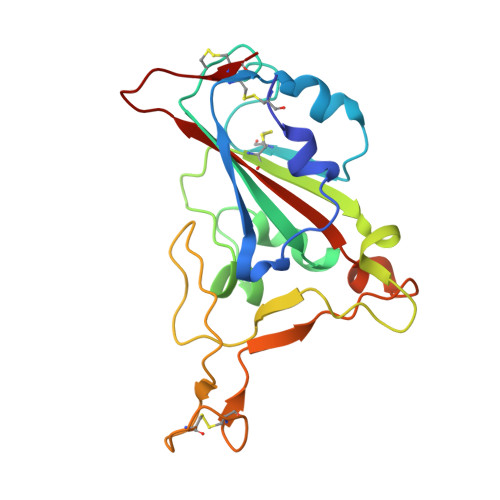

RaTG13 RBD	B [auth E]	194	Bat coronavirus RaTG13	Mutation(s): 0

Oligosaccharides

Help

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	C [auth B]	3		N-Glycosylation

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG	D [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 3.98 Å
• R-Value Free:  0.271 (Depositor), 0.270 (DCC)
• R-Value Work:  0.205 (Depositor), 0.212 (DCC)
• R-Value Observed: 0.212 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 140.526	α = 90
b = 97.319	β = 129.27
c = 90.534	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-3000	data reduction
HKL-3000	data scaling
PHENIX	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-11-26
Deposition Author(s): Lan, J., Wang, C.H.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2025-11-26
  Type: Initial release
