9HDW | pdb_00009hdw

Orotidine 5'-monophosphate decarboxylase-domain of human UMPS in complex with the product UMP at 0.83 Angstroms resolution

PDB DOI: https://doi.org/10.2210/pdb9HDW/pdb

Classification: LYASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-11-13 Released: 2025-11-19
Deposition Author(s): Kirck, L.L., Tittmann, K.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 0.83 Å
R-Value Free:
0.119 (Depositor), 0.119 (DCC)
R-Value Work:
0.108 (Depositor), 0.108 (DCC)
R-Value Observed:
0.108 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Orotidine 5'-monophosphate decarboxylase-domain of human UMPS in complex with the product UMP at 0.83 Angstroms resolution

Kirck, L.L., Tittmann, K.

To be published.

Macromolecule Content

Total Structure Weight: 28.71 kDa
Atom Count: 2,872
Modeled Residue Count: 257
Deposited Residue Count: 258
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

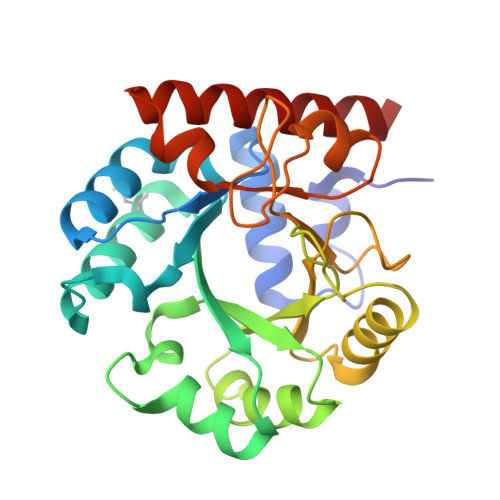

Uridine 5'-monophosphate synthase	A	258	Homo sapiens	Mutation(s): 0 Gene Names: UMPS, OK/SW-cl.21 EC: 2.4.2.10 (PDB Primary Data), 4.1.1.23 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P11172 (Homo sapiens) Explore P11172 Go to UniProtKB: P11172
PHAROS: P11172 GTEx: ENSG00000114491
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P11172
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
U5P (Subject of Investigation/LOI) Query on U5P Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	URIDINE-5'-MONOPHOSPHATE C₉ H₁₃ N₂ O₉ P DJJCXFVJDGTHFX-XVFCMESISA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A]	C [auth A], D [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
CSS Query on CSS	A	L-PEPTIDE LINKING	C₃ H₇ N O₂ S₂		CYS

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 0.83 Å
R-Value Free: 0.119 (Depositor), 0.119 (DCC)
R-Value Work: 0.108 (Depositor), 0.108 (DCC)
R-Value Observed: 0.108 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 78.83	α = 90
b = 116.56	β = 90
c = 61.99	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XSCALE	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2025-11-19

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-11-19
Type: Initial release
