9C01 | pdb_00009c01

UIC-1 bound to phenol

• PDB DOI: https://doi.org/10.2210/pdb9C01/pdb

• Classification: DE NOVO PROTEIN
• Organism(s): synthetic construct
• Mutation(s): No


• Deposited: 2024-05-24 Released: 2025-11-26
• Deposition Author(s): Heinz-Kunert, S.L.
• Funding Organization(s): Department of Energy (DOE, United States)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 0.83 Å
• R-Value Free:
  0.116 (Depositor), 0.116 (DCC)
• R-Value Work:
  0.086 (Depositor), 0.086 (DCC)

Starting Model: experimental

Literature

Evolvable conformational diversity in assemblies of short peptides

Heinz-Kunert, S.L., Nguyen, A.I.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 1.52 kDa
• Atom Count: 250
• Modeled Residue Count: 9
• Deposited Residue Count: 9
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

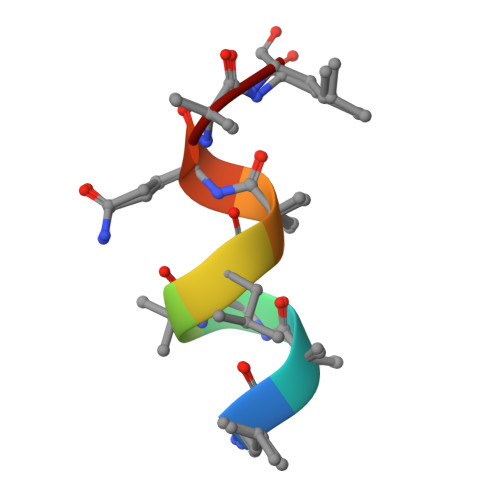

UIC-1	A	9	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
I6W (Subject of Investigation/LOI)	C [auth A]	ethyl 5'-formyl[2,2'-bipyridine]-5-carboxylate C14 H12 N2 O4 FZDQJVHCAWGPRW-UHFFFAOYSA-N
I77 (Subject of Investigation/LOI)	B [auth A]	5'-(hydrazinecarbonyl)[2,2'-bipyridine]-5-carboxamide C12 H11 N5 O2 HCFBUFHFZAJOFM-UHFFFAOYSA-N
IPH (Subject of Investigation/LOI)	D [auth A]	PHENOL C6 H6 O ISWSIDIOOBJBQZ-UHFFFAOYSA-N

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
AIB	A	L-PEPTIDE LINKING	C4 H9 N O2		ALA

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 0.83 Å
• R-Value Free:  0.116 (Depositor), 0.116 (DCC)
• R-Value Work:  0.086 (Depositor), 0.086 (DCC)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 13.916	α = 90
b = 13.389	β = 98.75
c = 27.419	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
CrysalisPro	data reduction
CrysalisPro	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-11-26
Deposition Author(s): Heinz-Kunert, S.L.

---

Funding Organization	Location	Grant Number
Department of Energy (DOE, United States)	United States	DE-AC02-06CH11357

Revision History

• Version 1.0: 2025-11-26
  Type: Initial release
