9BEA | pdb_00009bea

Structure of SARS-CoV-2 full-length WT spike protein with internal tag, 2RBD-up conformation (SPIKE-WT)

PDB DOI: https://doi.org/10.2210/pdb9BEA/pdb
EM Map EMD-44475: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2024-04-15 Released: 2025-04-16
Deposition Author(s): Singh, S., Hasan, S.S.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.85 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure of SARS CoV-2 full-length spike protein with internal tag, 2RBD-up conformation

Singh, S., Hasan, S.S.

To be published.

Macromolecule Content

Total Structure Weight: 458.81 kDa
Atom Count: 26,207
Modeled Residue Count: 3,161
Deposited Residue Count: 3,936
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

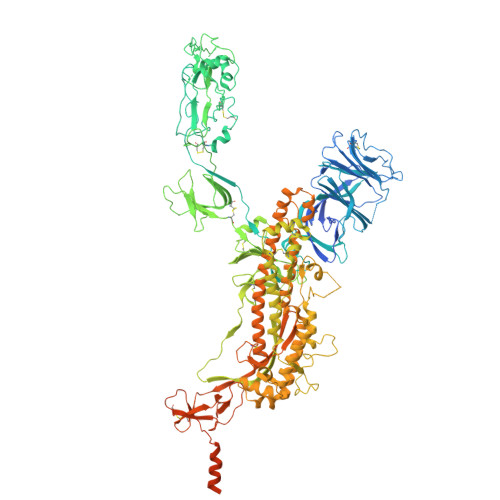

Spike glycoprotein	A, B, C	1,312	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 6 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTC2
Glycosylation
Glycosylation Sites: 16	Glycosylation Focus chain A Focus chain B Focus chain C	Go to GlyGen: P0DTC2-1
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D, DA [auth d], FA [auth f], G, GA [auth g], D, DA [auth d], FA [auth f], G, GA [auth g], J, M, R, T, Y, Z	3		N-Glycosylation	Interactions Focus chain D Focus chain DA [auth d] Focus chain FA [auth f] Focus chain G Focus chain GA [auth g] Focus chain J Focus chain M Focus chain R Focus chain T Focus chain Y Focus chain Z Interactions & Density Focus chain D Focus chain DA [auth d] Focus chain FA [auth f] Focus chain G Focus chain GA [auth g] Focus chain J Focus chain M Focus chain R Focus chain T Focus chain Y Focus chain Z
Glycosylation Resources
GlyTouCan: G15407YE GlyCosmos: G15407YE GlyGen: G15407YE

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	BA [auth b], CA [auth c], E, F, N, BA [auth b], CA [auth c], E, F, N, P, X	2		N-Glycosylation	Interactions Focus chain BA [auth b] Focus chain CA [auth c] Focus chain E Focus chain F Focus chain N Focus chain P Focus chain X Interactions & Density Focus chain BA [auth b] Focus chain CA [auth c] Focus chain E Focus chain F Focus chain N Focus chain P Focus chain X
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	AA [auth a], H, IA [auth i], O, Q, AA [auth a], H, IA [auth i], O, Q, S	4		N-Glycosylation	Interactions Focus chain AA [auth a] Focus chain H Focus chain IA [auth i] Focus chain O Focus chain Q Focus chain S Interactions & Density Focus chain AA [auth a] Focus chain H Focus chain IA [auth i] Focus chain O Focus chain Q Focus chain S
Glycosylation Resources
GlyTouCan: G81315DD GlyCosmos: G81315DD GlyGen: G81315DD

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	I, L	5		N-Glycosylation	Interactions Focus chain I Focus chain L Interactions & Density Focus chain I Focus chain L
Glycosylation Resources
GlyTouCan: G22768VO GlyCosmos: G22768VO GlyGen: G22768VO

Entity ID: 6
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	K, U	3		N-Glycosylation	Interactions Focus chain K Focus chain U Interactions & Density Focus chain K Focus chain U
Glycosylation Resources
GlyTouCan: G21290RB GlyCosmos: G21290RB GlyGen: G21290RB

Entity ID: 7
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	V	4		N-Glycosylation	Interactions Focus chain V Interactions & Density Focus chain V
Glycosylation Resources
GlyTouCan: G48068RF GlyCosmos: G48068RF GlyGen: G48068RF

Entity ID: 8
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	W	4		N-Glycosylation	Interactions Focus chain W Interactions & Density Focus chain W
Glycosylation Resources
GlyTouCan: G04854NQ GlyCosmos: G04854NQ GlyGen: G04854NQ

Entity ID: 9
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	EA [auth e]	2		N/A	Interactions Focus chain EA [auth e] Interactions & Density Focus chain EA [auth e]
Glycosylation Resources
GlyTouCan: G90333CG GlyCosmos: G90333CG GlyGen: G90333CG

Entity ID: 10
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	HA [auth h]	4		N-Glycosylation	Interactions Focus chain HA [auth h] Interactions & Density Focus chain HA [auth h]
Glycosylation Resources
GlyTouCan: G22573RC GlyCosmos: G22573RC GlyGen: G22573RC

Entity ID: 11
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose	JA [auth j]	2		N-Glycosylation	Interactions Focus chain JA [auth j] Interactions & Density Focus chain JA [auth j]
Glycosylation Resources
GlyTouCan: G86851RC GlyCosmos: G86851RC GlyGen: G86851RC

Entity ID: 12
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	KA [auth k]	6		N-Glycosylation	Interactions Focus chain KA [auth k] Interactions & Density Focus chain KA [auth k]
Glycosylation Resources
GlyTouCan: G82348BZ GlyCosmos: G82348BZ GlyGen: G82348BZ

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download Ideal Coordinates CCD File SDF format, chain SA [auth B] SDF format, chain ZA [auth C] SDF format, chain YA [auth C] SDF format, chain XA [auth C] SDF format, chain WA [auth B] SDF format, chain VA [auth B] SDF format, chain UA [auth B] SDF format, chain TA [auth B] SDF format, chain RA [auth B] SDF format, chain QA [auth A] SDF format, chain PA [auth A] SDF format, chain OA [auth A] SDF format, chain NA [auth A] SDF format, chain MA [auth A] SDF format, chain LA [auth A] MOL2 format, chain SA [auth B] MOL2 format, chain ZA [auth C] MOL2 format, chain YA [auth C] MOL2 format, chain XA [auth C] MOL2 format, chain WA [auth B] MOL2 format, chain VA [auth B] MOL2 format, chain UA [auth B] MOL2 format, chain TA [auth B] MOL2 format, chain RA [auth B] MOL2 format, chain QA [auth A] MOL2 format, chain PA [auth A] MOL2 format, chain OA [auth A] MOL2 format, chain NA [auth A] MOL2 format, chain MA [auth A] MOL2 format, chain LA [auth A] mmCIF format, chain SA [auth B] mmCIF format, chain ZA [auth C] mmCIF format, chain YA [auth C] mmCIF format, chain XA [auth C] mmCIF format, chain WA [auth B] mmCIF format, chain VA [auth B] mmCIF format, chain UA [auth B] mmCIF format, chain TA [auth B] mmCIF format, chain RA [auth B] mmCIF format, chain QA [auth A] mmCIF format, chain PA [auth A] mmCIF format, chain OA [auth A] mmCIF format, chain NA [auth A] mmCIF format, chain MA [auth A] mmCIF format, chain LA [auth A]	LA [auth A] MA [auth A] NA [auth A] OA [auth A] PA [auth A] LA [auth A], MA [auth A], NA [auth A], OA [auth A], PA [auth A], QA [auth A], RA [auth B], SA [auth B], TA [auth B], UA [auth B], VA [auth B], WA [auth B], XA [auth C], YA [auth C], ZA [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain LA [auth A] Focus chain MA [auth A] Focus chain NA [auth A] Focus chain OA [auth A] Focus chain PA [auth A] Focus chain QA [auth A] Focus chain RA [auth B] Focus chain SA [auth B] Focus chain TA [auth B] Focus chain UA [auth B] Focus chain VA [auth B] Focus chain WA [auth B] Focus chain XA [auth C] Focus chain YA [auth C] Focus chain ZA [auth C] Interactions & Density Focus chain LA [auth A] Focus chain MA [auth A] Focus chain NA [auth A] Focus chain OA [auth A] Focus chain PA [auth A] Focus chain QA [auth A] Focus chain RA [auth B] Focus chain SA [auth B] Focus chain TA [auth B] Focus chain UA [auth B] Focus chain VA [auth B] Focus chain WA [auth B] Focus chain XA [auth C] Focus chain YA [auth C] Focus chain ZA [auth C]
