8UJC | pdb_00008ujc

In situ human 60S ribosome

PDB DOI: https://doi.org/10.2210/pdb8UJC/pdb
NAKB: 8UJC
EM Map EMD-42318: EMDB EMDataResource

Classification: RIBOSOME
Organism(s): Homo sapiens
Mutation(s): No

Deposited: 2023-10-11 Released: 2025-04-16
Deposition Author(s): Wei, Z., Yong, X.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.87 Å
Aggregation State: CELL
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

In situ human 60S ribosome

Wei, Z., Yong, X.

To be published.

Macromolecule Content

Total Structure Weight: 2,535 kDa
Atom Count: 139,414
Modeled Residue Count: 10,738
Deposited Residue Count: 12,290
Unique protein chains: 42
Unique nucleic acid chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Ribosomal protein L24	A [auth LW]	124	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for C9JNW5 (Homo sapiens) Explore C9JNW5 Go to UniProtKB: C9JNW5
GTEx: ENSG00000114391
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	C9JNW5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L8	E [auth LA]	248	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62917 (Homo sapiens) Explore P62917 Go to UniProtKB: P62917
GTEx: ENSG00000161016
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62917
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL3	F [auth LB]	402	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P39023 (Homo sapiens) Explore P39023 Go to UniProtKB: P39023
PHAROS: P39023 GTEx: ENSG00000100316
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P39023
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L4	G [auth LC]	368	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P36578 (Homo sapiens) Explore P36578 Go to UniProtKB: P36578
PHAROS: P36578 GTEx: ENSG00000174444
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P36578
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein uL18	H [auth LD]	293	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P46777 (Homo sapiens) Explore P46777 Go to UniProtKB: P46777
PHAROS: P46777 GTEx: ENSG00000122406
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P46777
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

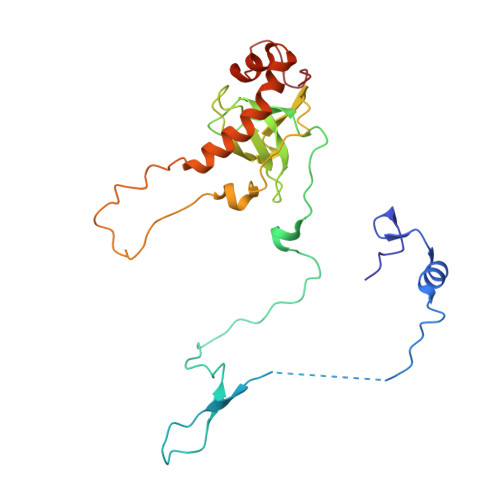

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein eL6	I [auth LE]	247	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q02878 (Homo sapiens) Explore Q02878 Go to UniProtKB: Q02878
PHAROS: Q02878 GTEx: ENSG00000089009
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q02878
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L7	J [auth LF]	225	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P18124 (Homo sapiens) Explore P18124 Go to UniProtKB: P18124
PHAROS: P18124 GTEx: ENSG00000147604
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P18124
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L7a	K [auth LG]	241	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62424 (Homo sapiens) Explore P62424 Go to UniProtKB: P62424
PHAROS: P62424 GTEx: ENSG00000148303
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62424
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L9	L [auth LH]	190	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P32969 (Homo sapiens) Explore P32969 Go to UniProtKB: P32969
PHAROS: P32969 GTEx: ENSG00000163682
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P32969
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
Ribosomal protein uL16-like	M [auth LI]	213	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96L21 (Homo sapiens) Explore Q96L21 Go to UniProtKB: Q96L21
PHAROS: Q96L21 GTEx: ENSG00000165496
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q96L21
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L11	N [auth LJ]	176	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62913 (Homo sapiens) Explore P62913 Go to UniProtKB: P62913
PHAROS: P62913 GTEx: ENSG00000142676
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62913
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein eL13	O [auth LL]	210	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P26373 (Homo sapiens) Explore P26373 Go to UniProtKB: P26373
PHAROS: P26373 GTEx: ENSG00000167526
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P26373
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L14	P [auth LM]	139	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P50914 (Homo sapiens) Explore P50914 Go to UniProtKB: P50914
PHAROS: P50914 GTEx: ENSG00000188846
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P50914
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L15	Q [auth LN]	203	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61313 (Homo sapiens) Explore P61313 Go to UniProtKB: P61313
PHAROS: P61313 GTEx: ENSG00000174748
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P61313
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L13a	R [auth LO]	201	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P40429 (Homo sapiens) Explore P40429 Go to UniProtKB: P40429
PHAROS: P40429 GTEx: ENSG00000142541
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P40429
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L17	S [auth LP]	153	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P18621 (Homo sapiens) Explore P18621 Go to UniProtKB: P18621
PHAROS: P18621 GTEx: ENSG00000265681
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P18621
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L18	T [auth LQ]	187	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q07020 (Homo sapiens) Explore Q07020 Go to UniProtKB: Q07020
PHAROS: Q07020 GTEx: ENSG00000063177
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q07020
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L19	U [auth LR]	187	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P84098 (Homo sapiens) Explore P84098 Go to UniProtKB: P84098
PHAROS: P84098 GTEx: ENSG00000108298
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P84098
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L18a	V [auth LS]	175	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q02543 (Homo sapiens) Explore Q02543 Go to UniProtKB: Q02543
GTEx: ENSG00000105640
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q02543
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L21	W [auth LT]	159	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P46778 (Homo sapiens) Explore P46778 Go to UniProtKB: P46778
PHAROS: P46778 GTEx: ENSG00000122026
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P46778
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image
Heparin-binding protein HBp15	X [auth LU]	101	Homo sapiens	Mutation(s): 0
UniProt
Find proteins for Q7Z4W8 (Homo sapiens) Explore Q7Z4W8 Go to UniProtKB: Q7Z4W8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q7Z4W8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L23	Y [auth LV]	131	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62829 (Homo sapiens) Explore P62829 Go to UniProtKB: P62829
PHAROS: P62829 GTEx: ENSG00000125691
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62829
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L23a	Z [auth LX]	120	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62750 (Homo sapiens) Explore P62750 Go to UniProtKB: P62750
PHAROS: P62750 GTEx: ENSG00000198242
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62750
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 27
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L26	AA [auth LY]	134	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61254 (Homo sapiens) Explore P61254 Go to UniProtKB: P61254
PHAROS: P61254 GTEx: ENSG00000161970
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P61254
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 28
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L27	BA [auth LZ]	135	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61353 (Homo sapiens) Explore P61353 Go to UniProtKB: P61353
PHAROS: P61353 GTEx: ENSG00000131469
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P61353
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 29
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L27a	CA [auth La]	147	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P46776 (Homo sapiens) Explore P46776 Go to UniProtKB: P46776
PHAROS: P46776 GTEx: ENSG00000166441
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P46776
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 30
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein eL29	DA [auth Lb]	121	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P47914 (Homo sapiens) Explore P47914 Go to UniProtKB: P47914
GTEx: ENSG00000162244
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P47914
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 31
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L30	EA [auth Lc]	98	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62888 (Homo sapiens) Explore P62888 Go to UniProtKB: P62888
PHAROS: P62888 GTEx: ENSG00000156482
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62888
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 32
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L31	FA [auth Ld]	107	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62899 (Homo sapiens) Explore P62899 Go to UniProtKB: P62899
PHAROS: P62899 GTEx: ENSG00000071082
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62899
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 33
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L32	GA [auth Le]	128	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62910 (Homo sapiens) Explore P62910 Go to UniProtKB: P62910
PHAROS: P62910 GTEx: ENSG00000144713
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62910
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 34
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L35a	HA [auth Lf]	109	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P18077 (Homo sapiens) Explore P18077 Go to UniProtKB: P18077
PHAROS: P18077 GTEx: ENSG00000182899
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P18077
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 35
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L34	IA [auth Lg]	114	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P49207 (Homo sapiens) Explore P49207 Go to UniProtKB: P49207
PHAROS: P49207 GTEx: ENSG00000109475
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P49207
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 36
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L35	JA [auth Lh]	122	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P42766 (Homo sapiens) Explore P42766 Go to UniProtKB: P42766
PHAROS: P42766 GTEx: ENSG00000136942
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P42766
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 37
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L36	KA [auth Li]	102	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y3U8 (Homo sapiens) Explore Q9Y3U8 Go to UniProtKB: Q9Y3U8
PHAROS: Q9Y3U8 GTEx: ENSG00000130255
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9Y3U8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 38
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L37	LA [auth Lj]	86	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61927 (Homo sapiens) Explore P61927 Go to UniProtKB: P61927
PHAROS: P61927 GTEx: ENSG00000145592
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P61927
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 39
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L38	MA [auth Lk]	69	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P63173 (Homo sapiens) Explore P63173 Go to UniProtKB: P63173
PHAROS: P63173 GTEx: ENSG00000172809
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P63173
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 40
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L39	NA [auth Ll]	50	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62891 (Homo sapiens) Explore P62891 Go to UniProtKB: P62891
GTEx: ENSG00000198918
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62891
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 41
Molecule	Chains	Sequence Length	Organism	Details	Image
Large ribosomal subunit protein eL40	OA [auth Lm]	52	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62987 (Homo sapiens) Explore P62987 Go to UniProtKB: P62987
PHAROS: P62987 GTEx: ENSG00000221983
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62987
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 42
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L36a	PA [auth Lo]	105	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P83881 (Homo sapiens) Explore P83881 Go to UniProtKB: P83881
PHAROS: P83881 GTEx: ENSG00000241343
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P83881
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 43
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L37a	QA [auth Lp]	91	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P61513 (Homo sapiens) Explore P61513 Go to UniProtKB: P61513
PHAROS: P61513 GTEx: ENSG00000197756
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P61513
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 44
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L28	RA [auth Lr]	125	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P46779 (Homo sapiens) Explore P46779 Go to UniProtKB: P46779
PHAROS: P46779 GTEx: ENSG00000108107
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P46779
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 45
Molecule	Chains	Sequence Length	Organism	Details	Image
Proliferation-associated protein 2G4	SA [auth CA]	356	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UQ80 (Homo sapiens) Explore Q9UQ80 Go to UniProtKB: Q9UQ80
PHAROS: Q9UQ80 GTEx: ENSG00000170515
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9UQ80
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Length	Organism	Image
28S rRNA	B [auth L5]	5,070	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Length	Organism	Image
5S rRNA [Homo sapiens]	C [auth L7]	120	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Length	Organism	Image
5.8S rRNA [Homo sapiens]	D [auth L8]	156	Homo sapiens
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN (Subject of Investigation/LOI) Query on ZN Download Ideal Coordinates CCD File SDF format, chain KJ [auth Lg] SDF format, chain MJ [auth Lj] SDF format, chain NJ [auth Lm] SDF format, chain OJ [auth Lo] SDF format, chain PJ [auth Lp] MOL2 format, chain KJ [auth Lg] MOL2 format, chain MJ [auth Lj] MOL2 format, chain NJ [auth Lm] MOL2 format, chain OJ [auth Lo] MOL2 format, chain PJ [auth Lp] mmCIF format, chain KJ [auth Lg] mmCIF format, chain MJ [auth Lj] mmCIF format, chain NJ [auth Lm] mmCIF format, chain OJ [auth Lo] mmCIF format, chain PJ [auth Lp]	KJ [auth Lg], MJ [auth Lj], NJ [auth Lm], OJ [auth Lo], PJ [auth Lp]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain KJ [auth Lg] Focus chain MJ [auth Lj] Focus chain NJ [auth Lm] Focus chain OJ [auth Lo] Focus chain PJ [auth Lp] Interactions & Density Focus chain KJ [auth Lg] Focus chain MJ [auth Lj] Focus chain NJ [auth Lm] Focus chain OJ [auth Lo] Focus chain PJ [auth Lp]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain AB [auth L5] SDF format, chain AC [auth L5] SDF format, chain AD [auth L5] SDF format, chain AE [auth L5] SDF format, chain AF [auth L5] SDF format, chain AG [auth L5] SDF format, chain AH [auth L5] SDF format, chain AI [auth L5] SDF format, chain AJ [auth L8] SDF format, chain BB [auth L5] SDF format, chain BC [auth L5] SDF format, chain BD [auth L5] SDF format, chain BE [auth L5] SDF format, chain BF [auth L5] SDF format, chain BG [auth L5] SDF format, chain BH [auth L5] SDF format, chain BI [auth L5] SDF format, chain BJ [auth L8] SDF format, chain CB [auth L5] SDF format, chain CC [auth L5] SDF format, chain CD [auth L5] SDF format, chain CE [auth L5] SDF format, chain CF [auth L5] SDF format, chain CG [auth L5] SDF format, chain CH [auth L5] SDF format, chain CI [auth L5] SDF format, chain CJ [auth L8] SDF format, chain DB [auth L5] SDF format, chain DC [auth L5] SDF format, chain DD [auth L5] SDF format, chain DE [auth L5] SDF format, chain DF [auth L5] SDF format, chain DG [auth L5] SDF format, chain DH [auth L5] SDF format, chain DI [auth L5] SDF format, chain DJ [auth L8] SDF format, chain EB [auth L5] SDF format, chain EC [auth L5] SDF format, chain ED [auth L5] SDF format, chain EE [auth L5] SDF format, chain EF [auth L5] SDF format, chain EG [auth L5] SDF format, chain EH [auth L5] SDF format, chain EI [auth L5] SDF format, chain EJ [auth LA] SDF format, chain FB [auth L5] SDF format, chain FC [auth L5] SDF format, chain FD [auth L5] SDF format, chain FE [auth L5] SDF format, chain FF [auth L5] SDF format, chain FG [auth L5] SDF format, chain FH [auth L5] SDF format, chain FI [auth L5] SDF format, chain FJ [auth LI] SDF format, chain GB [auth L5] SDF format, chain GC [auth L5] SDF format, chain GD [auth L5] SDF format, chain GE [auth L5] SDF format, chain GF [auth L5] SDF format, chain GG [auth L5] SDF format, chain GH [auth L5] SDF format, chain GI [auth L5] SDF format, chain GJ [auth LP] SDF format, chain HB [auth L5] SDF format, chain HC [auth L5] SDF format, chain HD [auth L5] SDF format, chain HE [auth L5] SDF format, chain HF [auth L5] SDF format, chain HG [auth L5] SDF format, chain HH [auth L5] SDF format, chain HI [auth L5] SDF format, chain HJ [auth LV] SDF format, chain IB [auth L5] SDF format, chain IC [auth L5] SDF format, chain ID [auth L5] SDF format, chain IE [auth L5] SDF format, chain IF [auth L5] SDF format, chain IG [auth L5] SDF format, chain IH [auth L5] SDF format, chain II [auth L5] SDF format, chain IJ [auth Le] SDF format, chain JB [auth L5] SDF format, chain JC [auth L5] SDF format, chain JD [auth L5] SDF format, chain JE [auth L5] SDF format, chain JF [auth L5] SDF format, chain JG [auth L5] SDF format, chain JH [auth L5] SDF format, chain JI [auth L5] SDF format, chain JJ [auth Lg] SDF format, chain KB [auth L5] SDF format, chain KC [auth L5] SDF format, chain KD [auth L5] SDF format, chain KE [auth L5] SDF format, chain KF [auth L5] SDF format, chain KG [auth L5] SDF format, chain KH [auth L5] SDF format, chain KI [auth L5] SDF format, chain LB [auth L5] SDF format, chain LC [auth L5] SDF format, chain LD [auth L5] SDF format, chain LE [auth L5] SDF format, chain LF [auth L5] SDF format, chain LG [auth L5] SDF format, chain LH [auth L5] SDF format, chain LI [auth L5] SDF format, chain LJ [auth Lj] SDF format, chain MB [auth L5] SDF format, chain MC [auth L5] SDF format, chain MD [auth L5] SDF format, chain ME [auth L5] SDF format, chain MF [auth L5] SDF format, chain MG [auth L5] SDF format, chain MH [auth L5] SDF format, chain MI [auth L5] SDF format, chain NB [auth L5] SDF format, chain NC [auth L5] SDF format, chain ND [auth L5] SDF format, chain NE [auth L5] SDF format, chain NF [auth L5] SDF format, chain NG [auth L5] SDF format, chain NH [auth L5] SDF format, chain NI [auth L5] SDF format, chain OB [auth L5] SDF format, chain OC [auth L5] SDF format, chain OD [auth L5] SDF format, chain OE [auth L5] SDF format, chain OF [auth L5] SDF format, chain OG [auth L5] SDF format, chain OH [auth L5] SDF format, chain OI [auth L5] SDF format, chain PB [auth L5] SDF format, chain PC [auth L5] SDF format, chain PD [auth L5] SDF format, chain PE [auth L5] SDF format, chain PF [auth L5] SDF format, chain PG [auth L5] SDF format, chain PH [auth L5] SDF format, chain PI [auth L5] SDF format, chain QB [auth L5] SDF format, chain QC [auth L5] SDF format, chain QD [auth L5] SDF format, chain QE [auth L5] SDF format, chain QF [auth L5] SDF format, chain QG [auth L5] SDF format, chain QH [auth L5] SDF format, chain QI [auth L5] SDF format, chain RB [auth L5] SDF format, chain RC [auth L5] SDF format, chain RD [auth L5] SDF format, chain RE [auth L5] SDF format, chain RF [auth L5] SDF format, chain RG [auth L5] SDF format, chain RH [auth L5] SDF format, chain RI [auth L5] SDF format, chain SB [auth L5] SDF format, chain SC [auth L5] SDF format, chain SD [auth L5] SDF format, chain SE [auth L5] SDF format, chain SF [auth L5] SDF format, chain SG [auth L5] SDF format, chain SH [auth L5] SDF format, chain SI [auth L5] SDF format, chain TA [auth L5] SDF format, chain TB [auth L5] SDF format, chain TC [auth L5] SDF format, chain TD [auth L5] SDF format, chain TE [auth L5] SDF format, chain TF [auth L5] SDF format, chain TG [auth L5] SDF format, chain TH [auth L5] SDF format, chain TI [auth L5] SDF format, chain UA [auth L5] SDF format, chain UB [auth L5] SDF format, chain UC [auth L5] SDF format, chain UD [auth L5] SDF format, chain UE [auth L5] SDF format, chain UF [auth L5] SDF format, chain UG [auth L5] SDF format, chain UH [auth L5] SDF format, chain UI [auth L5] SDF format, chain VA [auth L5] SDF format, chain VB [auth L5] SDF format, chain VC [auth L5] SDF format, chain VD [auth L5] SDF format, chain VE [auth L5] SDF format, chain VF [auth L5] SDF format, chain VG [auth L5] SDF format, chain VH [auth L5] SDF format, chain VI [auth L5] SDF format, chain WA [auth L5] SDF format, chain WB [auth L5] SDF format, chain WC [auth L5] SDF format, chain WD [auth L5] SDF format, chain WE [auth L5] SDF format, chain WF [auth L5] SDF format, chain WG [auth L5] SDF format, chain WH [auth L5] SDF format, chain WI [auth L5] SDF format, chain XA [auth L5] SDF format, chain XB [auth L5] SDF format, chain XC [auth L5] SDF format, chain XD [auth L5] SDF format, chain XE [auth L5] SDF format, chain XF [auth L5] SDF format, chain XG [auth L5] SDF format, chain XH [auth L5] SDF format, chain XI [auth L7] SDF format, chain YA [auth L5] SDF format, chain YB [auth L5] SDF format, chain YC [auth L5] SDF format, chain YD [auth L5] SDF format, chain YE [auth L5] SDF format, chain YF [auth L5] SDF format, chain YG [auth L5] SDF format, chain YH [auth L5] SDF format, chain YI [auth L7] SDF format, chain ZA [auth L5] SDF format, chain ZB [auth L5] SDF format, chain ZC [auth L5] SDF format, chain ZD [auth L5] SDF format, chain ZE [auth L5] SDF format, chain ZF [auth L5] SDF format, chain ZG [auth L5] SDF format, chain ZH [auth L5] SDF format, chain ZI [auth L7] MOL2 format, chain AB [auth L5] MOL2 format, chain AC [auth L5] MOL2 format, chain AD [auth L5] MOL2 format, chain AE [auth L5] MOL2 format, chain AF [auth L5] MOL2 format, chain AG [auth L5] MOL2 format, chain AH [auth L5] MOL2 format, chain AI [auth L5] MOL2 format, chain AJ [auth L8] MOL2 format, chain BB [auth L5] MOL2 format, chain BC [auth L5] MOL2 format, chain BD [auth L5] MOL2 format, chain BE [auth L5] MOL2 format, chain BF [auth L5] MOL2 format, chain BG [auth L5] MOL2 format, chain BH [auth L5] MOL2 format, chain BI [auth L5] MOL2 format, chain BJ [auth L8] MOL2 format, chain CB [auth L5] MOL2 format, chain CC [auth L5] MOL2 format, chain CD [auth L5] MOL2 format, chain CE [auth L5] MOL2 format, chain CF [auth L5] MOL2 format, chain CG [auth L5] MOL2 format, chain CH [auth L5] MOL2 format, chain CI [auth L5] MOL2 format, chain CJ [auth L8] MOL2 format, chain DB [auth L5] MOL2 format, chain DC [auth L5] MOL2 format, chain DD [auth L5] MOL2 format, chain DE [auth L5] MOL2 format, chain DF [auth L5] MOL2 format, chain DG [auth L5] MOL2 format, chain DH [auth L5] MOL2 format, chain DI [auth L5] MOL2 format, chain DJ [auth L8] MOL2 format, chain EB [auth L5] MOL2 format, chain EC [auth L5] MOL2 format, chain ED [auth L5] MOL2 format, chain EE [auth L5] MOL2 format, chain EF [auth L5] MOL2 format, chain EG [auth L5] MOL2 format, chain EH [auth L5] MOL2 format, chain EI [auth L5] MOL2 format, chain EJ [auth LA] MOL2 format, chain FB [auth L5] MOL2 format, chain FC [auth L5] MOL2 format, chain FD [auth L5] MOL2 format, chain FE [auth L5] MOL2 format, chain FF [auth L5] MOL2 format, chain FG [auth L5] MOL2 format, chain FH [auth L5] MOL2 format, chain FI [auth L5] MOL2 format, chain FJ [auth LI] MOL2 format, chain GB [auth L5] MOL2 format, chain GC [auth L5] MOL2 format, chain GD [auth L5] MOL2 format, chain GE [auth L5] MOL2 format, chain GF [auth L5] MOL2 format, chain GG [auth L5] MOL2 format, chain GH [auth L5] MOL2 format, chain GI [auth L5] MOL2 format, chain GJ [auth LP] MOL2 format, chain HB [auth L5] MOL2 format, chain HC [auth L5] MOL2 format, chain HD [auth L5] MOL2 format, chain HE [auth L5] MOL2 format, chain HF [auth L5] MOL2 format, chain HG [auth L5] MOL2 format, chain HH [auth L5] MOL2 format, chain HI [auth L5] MOL2 format, chain HJ [auth LV] MOL2 format, chain IB [auth L5] MOL2 format, chain IC [auth L5] MOL2 format, chain ID [auth L5] MOL2 format, chain IE [auth L5] MOL2 format, chain IF [auth L5] MOL2 format, chain IG [auth L5] MOL2 format, chain IH [auth L5] MOL2 format, chain II [auth L5] MOL2 format, chain IJ [auth Le] MOL2 format, chain JB [auth L5] MOL2 format, chain JC [auth L5] MOL2 format, chain JD [auth L5] MOL2 format, chain JE [auth L5] MOL2 format, chain JF [auth L5] MOL2 format, chain JG [auth L5] MOL2 format, chain JH [auth L5] MOL2 format, chain JI [auth L5] MOL2 format, chain JJ [auth Lg] MOL2 format, chain KB [auth L5] MOL2 format, chain KC [auth L5] MOL2 format, chain KD [auth L5] MOL2 format, chain KE [auth L5] MOL2 format, chain KF [auth L5] MOL2 format, chain KG [auth L5] MOL2 format, chain KH [auth L5] MOL2 format, chain KI [auth L5] MOL2 format, chain LB [auth L5] MOL2 format, chain LC [auth L5] MOL2 format, chain LD [auth L5] MOL2 format, chain LE [auth L5] MOL2 format, chain LF [auth L5] MOL2 format, chain LG [auth L5] MOL2 format, chain LH [auth L5] MOL2 format, chain LI [auth L5] MOL2 format, chain LJ [auth Lj] MOL2 format, chain MB [auth L5] MOL2 format, chain MC [auth L5] MOL2 format, chain MD [auth L5] MOL2 format, chain ME [auth L5] MOL2 format, chain MF [auth L5] MOL2 format, chain MG [auth L5] MOL2 format, chain MH [auth L5] MOL2 format, chain MI [auth L5] MOL2 format, chain NB [auth L5] MOL2 format, chain NC [auth L5] MOL2 format, chain ND [auth L5] MOL2 format, chain NE [auth L5] MOL2 format, chain NF [auth L5] MOL2 format, chain NG [auth L5] MOL2 format, chain NH [auth L5] MOL2 format, chain NI [auth L5] MOL2 format, chain OB [auth L5] MOL2 format, chain OC [auth L5] MOL2 format, chain OD [auth L5] MOL2 format, chain OE [auth L5] MOL2 format, chain OF [auth L5] MOL2 format, chain OG [auth L5] MOL2 format, chain OH [auth L5] MOL2 format, chain OI [auth L5] MOL2 format, chain PB [auth L5] MOL2 format, chain PC [auth L5] MOL2 format, chain PD [auth L5] MOL2 format, chain PE [auth L5] MOL2 format, chain PF [auth L5] MOL2 format, chain PG [auth L5] MOL2 format, chain PH [auth L5] MOL2 format, chain PI [auth L5] MOL2 format, chain QB [auth L5] MOL2 format, chain QC [auth L5] MOL2 format, chain QD [auth L5] MOL2 format, chain QE [auth L5] MOL2 format, chain QF [auth L5] MOL2 format, chain QG [auth L5] MOL2 format, chain QH [auth L5] MOL2 format, chain QI [auth L5] MOL2 format, chain RB [auth L5] MOL2 format, chain RC [auth L5] MOL2 format, chain RD [auth L5] MOL2 format, chain RE [auth L5] MOL2 format, chain RF [auth L5] MOL2 format, chain RG [auth L5] MOL2 format, chain RH [auth L5] MOL2 format, chain RI [auth L5] MOL2 format, chain SB [auth L5] MOL2 format, chain SC [auth L5] MOL2 format, chain SD [auth L5] MOL2 format, chain SE [auth L5] MOL2 format, chain SF [auth L5] MOL2 format, chain SG [auth L5] MOL2 format, chain SH [auth L5] MOL2 format, chain SI [auth L5] MOL2 format, chain TA [auth L5] MOL2 format, chain TB [auth L5] MOL2 format, chain TC [auth L5] MOL2 format, chain TD [auth L5] MOL2 format, chain TE [auth L5] MOL2 format, chain TF [auth L5] MOL2 format, chain TG [auth L5] MOL2 format, chain TH [auth L5] MOL2 format, chain TI [auth L5] MOL2 format, chain UA [auth L5] MOL2 format, chain UB [auth L5] MOL2 format, chain UC [auth L5] MOL2 format, chain UD [auth L5] MOL2 format, chain UE [auth L5] MOL2 format, chain UF [auth L5] MOL2 format, chain UG [auth L5] MOL2 format, chain UH [auth L5] MOL2 format, chain UI [auth L5] MOL2 format, chain VA [auth L5] MOL2 format, chain VB [auth L5] MOL2 format, chain VC [auth L5] MOL2 format, chain VD [auth L5] MOL2 format, chain VE [auth L5] MOL2 format, chain VF [auth L5] MOL2 format, chain VG [auth L5] MOL2 format, chain VH [auth L5] MOL2 format, chain VI [auth L5] MOL2 format, chain WA [auth L5] MOL2 format, chain WB [auth L5] MOL2 format, chain WC [auth L5] MOL2 format, chain WD [auth L5] MOL2 format, chain WE [auth L5] MOL2 format, chain WF [auth L5] MOL2 format, chain WG [auth L5] MOL2 format, chain WH [auth L5] MOL2 format, chain WI [auth L5] MOL2 format, chain XA [auth L5] MOL2 format, chain XB [auth L5] MOL2 format, chain XC [auth L5] MOL2 format, chain XD [auth L5] MOL2 format, chain XE [auth L5] MOL2 format, chain XF [auth L5] MOL2 format, chain XG [auth L5] MOL2 format, chain XH [auth L5] MOL2 format, chain XI [auth L7] MOL2 format, chain YA [auth L5] MOL2 format, chain YB [auth L5] MOL2 format, chain YC [auth L5] MOL2 format, chain YD [auth L5] MOL2 format, chain YE [auth L5] MOL2 format, chain YF [auth L5] MOL2 format, chain YG [auth L5] MOL2 format, chain YH [auth L5] MOL2 format, chain YI [auth L7] MOL2 format, chain ZA [auth L5] MOL2 format, chain ZB [auth L5] MOL2 format, chain ZC [auth L5] MOL2 format, chain ZD [auth L5] MOL2 format, chain ZE [auth L5] MOL2 format, chain ZF [auth L5] MOL2 format, chain ZG [auth L5] MOL2 format, chain ZH [auth L5] MOL2 format, chain ZI [auth L7] mmCIF format, chain AB [auth L5] mmCIF format, chain AC [auth L5] mmCIF format, chain AD [auth L5] mmCIF format, chain AE [auth L5] mmCIF format, chain AF [auth L5] mmCIF format, chain AG [auth L5] mmCIF format, chain AH [auth L5] mmCIF format, chain AI [auth L5] mmCIF format, chain AJ [auth L8] mmCIF format, chain BB [auth L5] mmCIF format, chain BC [auth L5] mmCIF format, chain BD [auth L5] mmCIF format, chain BE [auth L5] mmCIF format, chain BF [auth L5] mmCIF format, chain BG [auth L5] mmCIF format, chain BH [auth L5] mmCIF format, chain BI [auth L5] mmCIF format, chain BJ [auth L8] mmCIF format, chain CB [auth L5] mmCIF format, chain CC [auth L5] mmCIF format, chain CD [auth L5] mmCIF format, chain CE [auth L5] mmCIF format, chain CF [auth L5] mmCIF format, chain CG [auth L5] mmCIF format, chain CH [auth L5] mmCIF format, chain CI [auth L5] mmCIF format, chain CJ [auth L8] mmCIF format, chain DB [auth L5] mmCIF format, chain DC [auth L5] mmCIF format, chain DD [auth L5] mmCIF format, chain DE [auth L5] mmCIF format, chain DF [auth L5] mmCIF format, chain DG [auth L5] mmCIF format, chain DH [auth L5] mmCIF format, chain DI [auth L5] mmCIF format, chain DJ [auth L8] mmCIF format, chain EB [auth L5] mmCIF format, chain EC [auth L5] mmCIF format, chain ED [auth L5] mmCIF format, chain EE [auth L5] mmCIF format, chain EF [auth L5] mmCIF format, chain EG [auth L5] mmCIF format, chain EH [auth L5] mmCIF format, chain EI [auth L5] mmCIF format, chain EJ [auth LA] mmCIF format, chain FB [auth L5] mmCIF format, chain FC [auth L5] mmCIF format, chain FD [auth L5] mmCIF format, chain FE [auth L5] mmCIF format, chain FF [auth L5] mmCIF format, chain FG [auth L5] mmCIF format, chain FH [auth L5] mmCIF format, chain FI [auth L5] mmCIF format, chain FJ [auth LI] mmCIF format, chain GB [auth L5] mmCIF format, chain GC [auth L5] mmCIF format, chain GD [auth L5] mmCIF format, chain GE [auth L5] mmCIF format, chain GF [auth L5] mmCIF format, chain GG [auth L5] mmCIF format, chain GH [auth L5] mmCIF format, chain GI [auth L5] mmCIF format, chain GJ [auth LP] mmCIF format, chain HB [auth L5] mmCIF format, chain HC [auth L5] mmCIF format, chain HD [auth L5] mmCIF format, chain HE [auth L5] mmCIF format, chain HF [auth L5] mmCIF format, chain HG [auth L5] mmCIF format, chain HH [auth L5] mmCIF format, chain HI [auth L5] mmCIF format, chain HJ [auth LV] mmCIF format, chain IB [auth L5] mmCIF format, chain IC [auth L5] mmCIF format, chain ID [auth L5] mmCIF format, chain IE [auth L5] mmCIF format, chain IF [auth L5] mmCIF format, chain IG [auth L5] mmCIF format, chain IH [auth L5] mmCIF format, chain II [auth L5] mmCIF format, chain IJ [auth Le] mmCIF format, chain JB [auth L5] mmCIF format, chain JC [auth L5] mmCIF format, chain JD [auth L5] mmCIF format, chain JE [auth L5] mmCIF format, chain JF [auth L5] mmCIF format, chain JG [auth L5] mmCIF format, chain JH [auth L5] mmCIF format, chain JI [auth L5] mmCIF format, chain JJ [auth Lg] mmCIF format, chain KB [auth L5] mmCIF format, chain KC [auth L5] mmCIF format, chain KD [auth L5] mmCIF format, chain KE [auth L5] mmCIF format, chain KF [auth L5] mmCIF format, chain KG [auth L5] mmCIF format, chain KH [auth L5] mmCIF format, chain KI [auth L5] mmCIF format, chain LB [auth L5] mmCIF format, chain LC [auth L5] mmCIF format, chain LD [auth L5] mmCIF format, chain LE [auth L5] mmCIF format, chain LF [auth L5] mmCIF format, chain LG [auth L5] mmCIF format, chain LH [auth L5] mmCIF format, chain LI [auth L5] mmCIF format, chain LJ [auth Lj] mmCIF format, chain MB [auth L5] mmCIF format, chain MC [auth L5] mmCIF format, chain MD [auth L5] mmCIF format, chain ME [auth L5] mmCIF format, chain MF [auth L5] mmCIF format, chain MG [auth L5] mmCIF format, chain MH [auth L5] mmCIF format, chain MI [auth L5] mmCIF format, chain NB [auth L5] mmCIF format, chain NC [auth L5] mmCIF format, chain ND [auth L5] mmCIF format, chain NE [auth L5] mmCIF format, chain NF [auth L5] mmCIF format, chain NG [auth L5] mmCIF format, chain NH [auth L5] mmCIF format, chain NI [auth L5] mmCIF format, chain OB [auth L5] mmCIF format, chain OC [auth L5] mmCIF format, chain OD [auth L5] mmCIF format, chain OE [auth L5] mmCIF format, chain OF [auth L5] mmCIF format, chain OG [auth L5] mmCIF format, chain OH [auth L5] mmCIF format, chain OI [auth L5] mmCIF format, chain PB [auth L5] mmCIF format, chain PC [auth L5] mmCIF format, chain PD [auth L5] mmCIF format, chain PE [auth L5] mmCIF format, chain PF [auth L5] mmCIF format, chain PG [auth L5] mmCIF format, chain PH [auth L5] mmCIF format, chain PI [auth L5] mmCIF format, chain QB [auth L5] mmCIF format, chain QC [auth L5] mmCIF format, chain QD [auth L5] mmCIF format, chain QE [auth L5] mmCIF format, chain QF [auth L5] mmCIF format, chain QG [auth L5] mmCIF format, chain QH [auth L5] mmCIF format, chain QI [auth L5] mmCIF format, chain RB [auth L5] mmCIF format, chain RC [auth L5] mmCIF format, chain RD [auth L5] mmCIF format, chain RE [auth L5] mmCIF format, chain RF [auth L5] mmCIF format, chain RG [auth L5] mmCIF format, chain RH [auth L5] mmCIF format, chain RI [auth L5] mmCIF format, chain SB [auth L5] mmCIF format, chain SC [auth L5] mmCIF format, chain SD [auth L5] mmCIF format, chain SE [auth L5] mmCIF format, chain SF [auth L5] mmCIF format, chain SG [auth L5] mmCIF format, chain SH [auth L5] mmCIF format, chain SI [auth L5] mmCIF format, chain TA [auth L5] mmCIF format, chain TB [auth L5] mmCIF format, chain TC [auth L5] mmCIF format, chain TD [auth L5] mmCIF format, chain TE [auth L5] mmCIF format, chain TF [auth L5] mmCIF format, chain TG [auth L5] mmCIF format, chain TH [auth L5] mmCIF format, chain TI [auth L5] mmCIF format, chain UA [auth L5] mmCIF format, chain UB [auth L5] mmCIF format, chain UC [auth L5] mmCIF format, chain UD [auth L5] mmCIF format, chain UE [auth L5] mmCIF format, chain UF [auth L5] mmCIF format, chain UG [auth L5] mmCIF format, chain UH [auth L5] mmCIF format, chain UI [auth L5] mmCIF format, chain VA [auth L5] mmCIF format, chain VB [auth L5] mmCIF format, chain VC [auth L5] mmCIF format, chain VD [auth L5] mmCIF format, chain VE [auth L5] mmCIF format, chain VF [auth L5] mmCIF format, chain VG [auth L5] mmCIF format, chain VH [auth L5] mmCIF format, chain VI [auth L5] mmCIF format, chain WA [auth L5] mmCIF format, chain WB [auth L5] mmCIF format, chain WC [auth L5] mmCIF format, chain WD [auth L5] mmCIF format, chain WE [auth L5] mmCIF format, chain WF [auth L5] mmCIF format, chain WG [auth L5] mmCIF format, chain WH [auth L5] mmCIF format, chain WI [auth L5] mmCIF format, chain XA [auth L5] mmCIF format, chain XB [auth L5] mmCIF format, chain XC [auth L5] mmCIF format, chain XD [auth L5] mmCIF format, chain XE [auth L5] mmCIF format, chain XF [auth L5] mmCIF format, chain XG [auth L5] mmCIF format, chain XH [auth L5] mmCIF format, chain XI [auth L7] mmCIF format, chain YA [auth L5] mmCIF format, chain YB [auth L5] mmCIF format, chain YC [auth L5] mmCIF format, chain YD [auth L5] mmCIF format, chain YE [auth L5] mmCIF format, chain YF [auth L5] mmCIF format, chain YG [auth L5] mmCIF format, chain YH [auth L5] mmCIF format, chain YI [auth L7] mmCIF format, chain ZA [auth L5] mmCIF format, chain ZB [auth L5] mmCIF format, chain ZC [auth L5] mmCIF format, chain ZD [auth L5] mmCIF format, chain ZE [auth L5] mmCIF format, chain ZF [auth L5] mmCIF format, chain ZG [auth L5] mmCIF format, chain ZH [auth L5] mmCIF format, chain ZI [auth L7]	AB [auth L5] AC [auth L5] AD [auth L5] AE [auth L5] AF [auth L5] AB [auth L5], AC [auth L5], AD [auth L5], AE [auth L5], AF [auth L5], AG [auth L5], AH [auth L5], AI [auth L5], AJ [auth L8], BB [auth L5], BC [auth L5], BD [auth L5], BE [auth L5], BF [auth L5], BG [auth L5], BH [auth L5], BI [auth L5], BJ [auth L8], CB [auth L5], CC [auth L5], CD [auth L5], CE [auth L5], CF [auth L5], CG [auth L5], CH [auth L5], CI [auth L5], CJ [auth L8], DB [auth L5], DC [auth L5], DD [auth L5], DE [auth L5], DF [auth L5], DG [auth L5], DH [auth L5], DI [auth L5], DJ [auth L8], EB [auth L5], EC [auth L5], ED [auth L5], EE [auth L5], EF [auth L5], EG [auth L5], EH [auth L5], EI [auth L5], EJ [auth LA], FB [auth L5], FC [auth L5], FD [auth L5], FE [auth L5], FF [auth L5], FG [auth L5], FH [auth L5], FI [auth L5], FJ [auth LI], GB [auth L5], GC [auth L5], GD [auth L5], GE [auth L5], GF [auth L5], GG [auth L5], GH [auth L5], GI [auth L5], GJ [auth LP], HB [auth L5], HC [auth L5], HD [auth L5], HE [auth L5], HF [auth L5], HG [auth L5], HH [auth L5], HI [auth L5], HJ [auth LV], IB [auth L5], IC [auth L5], ID [auth L5], IE [auth L5], IF [auth L5], IG [auth L5], IH [auth L5], II [auth L5], IJ [auth Le], JB [auth L5], JC [auth L5], JD [auth L5], JE [auth L5], JF [auth L5], JG [auth L5], JH [auth L5], JI [auth L5], JJ [auth Lg], KB [auth L5], KC [auth L5], KD [auth L5], KE [auth L5], KF [auth L5], KG [auth L5], KH [auth L5], KI [auth L5], LB [auth L5], LC [auth L5], LD [auth L5], LE [auth L5], LF [auth L5], LG [auth L5], LH [auth L5], LI [auth L5], LJ [auth Lj], MB [auth L5], MC [auth L5], MD [auth L5], ME [auth L5], MF [auth L5], MG [auth L5], MH [auth L5], MI [auth L5], NB [auth L5], NC [auth L5], ND [auth L5], NE [auth L5], NF [auth L5], NG [auth L5], NH [auth L5], NI [auth L5], OB [auth L5], OC [auth L5], OD [auth L5], OE [auth L5], OF [auth L5], OG [auth L5], OH [auth L5], OI [auth L5], PB [auth L5], PC [auth L5], PD [auth L5], PE [auth L5], PF [auth L5], PG [auth L5], PH [auth L5], PI [auth L5], QB [auth L5], QC [auth L5], QD [auth L5], QE [auth L5], QF [auth L5], QG [auth L5], QH [auth L5], QI [auth L5], RB [auth L5], RC [auth L5], RD [auth L5], RE [auth L5], RF [auth L5], RG [auth L5], RH [auth L5], RI [auth L5], SB [auth L5], SC [auth L5], SD [auth L5], SE [auth L5], SF [auth L5], SG [auth L5], SH [auth L5], SI [auth L5], TA [auth L5], TB [auth L5], TC [auth L5], TD [auth L5], TE [auth L5], TF [auth L5], TG [auth L5], TH [auth L5], TI [auth L5], UA [auth L5], UB [auth L5], UC [auth L5], UD [auth L5], UE [auth L5], UF [auth L5], UG [auth L5], UH [auth L5], UI [auth L5], VA [auth L5], VB [auth L5], VC [auth L5], VD [auth L5], VE [auth L5], VF [auth L5], VG [auth L5], VH [auth L5], VI [auth L5], WA [auth L5], WB [auth L5], WC [auth L5], WD [auth L5], WE [auth L5], WF [auth L5], WG [auth L5], WH [auth L5], WI [auth L5], XA [auth L5], XB [auth L5], XC [auth L5], XD [auth L5], XE [auth L5], XF [auth L5], XG [auth L5], XH [auth L5], XI [auth L7], YA [auth L5], YB [auth L5], YC [auth L5], YD [auth L5], YE [auth L5], YF [auth L5], YG [auth L5], YH [auth L5], YI [auth L7], ZA [auth L5], ZB [auth L5], ZC [auth L5], ZD [auth L5], ZE [auth L5], ZF [auth L5], ZG [auth L5], ZH [auth L5], ZI [auth L7]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AB [auth L5] Focus chain AC [auth L5] Focus chain AD [auth L5] Focus chain AE [auth L5] Focus chain AF [auth L5] Focus chain AG [auth L5] Focus chain AH [auth L5] Focus chain AI [auth L5] Focus chain AJ [auth L8] Focus chain BB [auth L5] Focus chain BC [auth L5] Focus chain BD [auth L5] Focus chain BE [auth L5] Focus chain BF [auth L5] Focus chain BG [auth L5] Focus chain BH [auth L5] Focus chain BI [auth L5] Focus chain BJ [auth L8] Focus chain CB [auth L5] Focus chain CC [auth L5] Focus chain CD [auth L5] Focus chain CE [auth L5] Focus chain CF [auth L5] Focus chain CG [auth L5] Focus chain CH [auth L5] Focus chain CI [auth L5] Focus chain CJ [auth L8] Focus chain DB [auth L5] Focus chain DC [auth L5] Focus chain DD [auth L5] Focus chain DE [auth L5] Focus chain DF [auth L5] Focus chain DG [auth L5] Focus chain DH [auth L5] Focus chain DI [auth L5] Focus chain DJ [auth L8] Focus chain EB [auth L5] Focus chain EC [auth L5] Focus chain ED [auth L5] Focus chain EE [auth L5] Focus chain EF [auth L5] Focus chain EG [auth L5] Focus chain EH [auth L5] Focus chain EI [auth L5] Focus chain EJ [auth LA] Focus chain FB [auth L5] Focus chain FC [auth L5] Focus chain FD [auth L5] Focus chain FE [auth L5] Focus chain FF [auth L5] Focus chain FG [auth L5] Focus chain FH [auth L5] Focus chain FI [auth L5] Focus chain FJ [auth LI] Focus chain GB [auth L5] Focus chain GC [auth L5] Focus chain GD [auth L5] Focus chain GE [auth L5] Focus chain GF [auth L5] Focus chain GG [auth L5] Focus chain GH [auth L5] Focus chain GI [auth L5] Focus chain GJ [auth LP] Focus chain HB [auth L5] Focus chain HC [auth L5] Focus chain HD [auth L5] Focus chain HE [auth L5] Focus chain HF [auth L5] Focus chain HG [auth L5] Focus chain HH [auth L5] Focus chain HI [auth L5] Focus chain HJ [auth LV] Focus chain IB [auth L5] Focus chain IC [auth L5] Focus chain ID [auth L5] Focus chain IE [auth L5] Focus chain IF [auth L5] Focus chain IG [auth L5] Focus chain IH [auth L5] Focus chain II [auth L5] Focus chain IJ [auth Le] Focus chain JB [auth L5] Focus chain JC [auth L5] Focus chain JD [auth L5] Focus chain JE [auth L5] Focus chain JF [auth L5] Focus chain JG [auth L5] Focus chain JH [auth L5] Focus chain JI [auth L5] Focus chain JJ [auth Lg] Focus chain KB [auth L5] Focus chain KC [auth L5] Focus chain KD [auth L5] Focus chain KE [auth L5] Focus chain KF [auth L5] Focus chain KG [auth L5] Focus chain KH [auth L5] Focus chain KI [auth L5] Focus chain LB [auth L5] Focus chain LC [auth L5] Focus chain LD [auth L5] Focus chain LE [auth L5] Focus chain LF [auth L5] Focus chain LG [auth L5] Focus chain LH [auth L5] Focus chain LI [auth L5] Focus chain LJ [auth Lj] Focus chain MB [auth L5] Focus chain MC [auth L5] Focus chain MD [auth L5] Focus chain ME [auth L5] Focus chain MF [auth L5] Focus chain MG [auth L5] Focus chain MH [auth L5] Focus chain MI [auth L5] Focus chain NB [auth L5] Focus chain NC [auth L5] Focus chain ND [auth L5] Focus chain NE [auth L5] Focus chain NF [auth L5] Focus chain NG [auth L5] Focus chain NH [auth L5] Focus chain NI [auth L5] Focus chain OB [auth L5] Focus chain OC [auth L5] Focus chain OD [auth L5] Focus chain OE [auth L5] Focus chain OF [auth L5] Focus chain OG [auth L5] Focus chain OH [auth L5] Focus chain OI [auth L5] Focus chain PB [auth L5] Focus chain PC [auth L5] Focus chain PD [auth L5] Focus chain PE [auth L5] Focus chain PF [auth L5] Focus chain PG [auth L5] Focus chain PH [auth L5] Focus chain PI [auth L5] Focus chain QB [auth L5] Focus chain QC [auth L5] Focus chain QD [auth L5] Focus chain QE [auth L5] Focus chain QF [auth L5] Focus chain QG [auth L5] Focus chain QH [auth L5] Focus chain QI [auth L5] Focus chain RB [auth L5] Focus chain RC [auth L5] Focus chain RD [auth L5] Focus chain RE [auth L5] Focus chain RF [auth L5] Focus chain RG [auth L5] Focus chain RH [auth L5] Focus chain RI [auth L5] Focus chain SB [auth L5] Focus chain SC [auth L5] Focus chain SD [auth L5] Focus chain SE [auth L5] Focus chain SF [auth L5] Focus chain SG [auth L5] Focus chain SH [auth L5] Focus chain SI [auth L5] Focus chain TA [auth L5] Focus chain TB [auth L5] Focus chain TC [auth L5] Focus chain TD [auth L5] Focus chain TE [auth L5] Focus chain TF [auth L5] Focus chain TG [auth L5] Focus chain TH [auth L5] Focus chain TI [auth L5] Focus chain UA [auth L5] Focus chain UB [auth L5] Focus chain UC [auth L5] Focus chain UD [auth L5] Focus chain UE [auth L5] Focus chain UF [auth L5] Focus chain UG [auth L5] Focus chain UH [auth L5] Focus chain UI [auth L5] Focus chain VA [auth L5] Focus chain VB [auth L5] Focus chain VC [auth L5] Focus chain VD [auth L5] Focus chain VE [auth L5] Focus chain VF [auth L5] Focus chain VG [auth L5] Focus chain VH [auth L5] Focus chain VI [auth L5] Focus chain WA [auth L5] Focus chain WB [auth L5] Focus chain WC [auth L5] Focus chain WD [auth L5] Focus chain WE [auth L5] Focus chain WF [auth L5] Focus chain WG [auth L5] Focus chain WH [auth L5] Focus chain WI [auth L5] Focus chain XA [auth L5] Focus chain XB [auth L5] Focus chain XC [auth L5] Focus chain XD [auth L5] Focus chain XE [auth L5] Focus chain XF [auth L5] Focus chain XG [auth L5] Focus chain XH [auth L5] Focus chain XI [auth L7] Focus chain YA [auth L5] Focus chain YB [auth L5] Focus chain YC [auth L5] Focus chain YD [auth L5] Focus chain YE [auth L5] Focus chain YF [auth L5] Focus chain YG [auth L5] Focus chain YH [auth L5] Focus chain YI [auth L7] Focus chain ZA [auth L5] Focus chain ZB [auth L5] Focus chain ZC [auth L5] Focus chain ZD [auth L5] Focus chain ZE [auth L5] Focus chain ZF [auth L5] Focus chain ZG [auth L5] Focus chain ZH [auth L5] Focus chain ZI [auth L7] Interactions & Density Focus chain AB [auth L5] Focus chain AC [auth L5] Focus chain AD [auth L5] Focus chain AE [auth L5] Focus chain AF [auth L5] Focus chain AG [auth L5] Focus chain AH [auth L5] Focus chain AI [auth L5] Focus chain AJ [auth L8] Focus chain BB [auth L5] Focus chain BC [auth L5] Focus chain BD [auth L5] Focus chain BE [auth L5] Focus chain BF [auth L5] Focus chain BG [auth L5] Focus chain BH [auth L5] Focus chain BI [auth L5] Focus chain BJ [auth L8] Focus chain CB [auth L5] Focus chain CC [auth L5] Focus chain CD [auth L5] Focus chain CE [auth L5] Focus chain CF [auth L5] Focus chain CG [auth L5] Focus chain CH [auth L5] Focus chain CI [auth L5] Focus chain CJ [auth L8] Focus chain DB [auth L5] Focus chain DC [auth L5] Focus chain DD [auth L5] Focus chain DE [auth L5] Focus chain DF [auth L5] Focus chain DG [auth L5] Focus chain DH [auth L5] Focus chain DI [auth L5] Focus chain DJ [auth L8] Focus chain EB [auth L5] Focus chain EC [auth L5] Focus chain ED [auth L5] Focus chain EE [auth L5] Focus chain EF [auth L5] Focus chain EG [auth L5] Focus chain EH [auth L5] Focus chain EI [auth L5] Focus chain EJ [auth LA] Focus chain FB [auth L5] Focus chain FC [auth L5] Focus chain FD [auth L5] Focus chain FE [auth L5] Focus chain FF [auth L5] Focus chain FG [auth L5] Focus chain FH [auth L5] Focus chain FI [auth L5] Focus chain FJ [auth LI] Focus chain GB [auth L5] Focus chain GC [auth L5] Focus chain GD [auth L5] Focus chain GE [auth L5] Focus chain GF [auth L5] Focus chain GG [auth L5] Focus chain GH [auth L5] Focus chain GI [auth L5] Focus chain GJ [auth LP] Focus chain HB [auth L5] Focus chain HC [auth L5] Focus chain HD [auth L5] Focus chain HE [auth L5] Focus chain HF [auth L5] Focus chain HG [auth L5] Focus chain HH [auth L5] Focus chain HI [auth L5] Focus chain HJ [auth LV] Focus chain IB [auth L5] Focus chain IC [auth L5] Focus chain ID [auth L5] Focus chain IE [auth L5] Focus chain IF [auth L5] Focus chain IG [auth L5] Focus chain IH [auth L5] Focus chain II [auth L5] Focus chain IJ [auth Le] Focus chain JB [auth L5] Focus chain JC [auth L5] Focus chain JD [auth L5] Focus chain JE [auth L5] Focus chain JF [auth L5] Focus chain JG [auth L5] Focus chain JH [auth L5] Focus chain JI [auth L5] Focus chain JJ [auth Lg] Focus chain KB [auth L5] Focus chain KC [auth L5] Focus chain KD [auth L5] Focus chain KE [auth L5] Focus chain KF [auth L5] Focus chain KG [auth L5] Focus chain KH [auth L5] Focus chain KI [auth L5] Focus chain LB [auth L5] Focus chain LC [auth L5] Focus chain LD [auth L5] Focus chain LE [auth L5] Focus chain LF [auth L5] Focus chain LG [auth L5] Focus chain LH [auth L5] Focus chain LI [auth L5] Focus chain LJ [auth Lj] Focus chain MB [auth L5] Focus chain MC [auth L5] Focus chain MD [auth L5] Focus chain ME [auth L5] Focus chain MF [auth L5] Focus chain MG [auth L5] Focus chain MH [auth L5] Focus chain MI [auth L5] Focus chain NB [auth L5] Focus chain NC [auth L5] Focus chain ND [auth L5] Focus chain NE [auth L5] Focus chain NF [auth L5] Focus chain NG [auth L5] Focus chain NH [auth L5] Focus chain NI [auth L5] Focus chain OB [auth L5] Focus chain OC [auth L5] Focus chain OD [auth L5] Focus chain OE [auth L5] Focus chain OF [auth L5] Focus chain OG [auth L5] Focus chain OH [auth L5] Focus chain OI [auth L5] Focus chain PB [auth L5] Focus chain PC [auth L5] Focus chain PD [auth L5] Focus chain PE [auth L5] Focus chain PF [auth L5] Focus chain PG [auth L5] Focus chain PH [auth L5] Focus chain PI [auth L5] Focus chain QB [auth L5] Focus chain QC [auth L5] Focus chain QD [auth L5] Focus chain QE [auth L5] Focus chain QF [auth L5] Focus chain QG [auth L5] Focus chain QH [auth L5] Focus chain QI [auth L5] Focus chain RB [auth L5] Focus chain RC [auth L5] Focus chain RD [auth L5] Focus chain RE [auth L5] Focus chain RF [auth L5] Focus chain RG [auth L5] Focus chain RH [auth L5] Focus chain RI [auth L5] Focus chain SB [auth L5] Focus chain SC [auth L5] Focus chain SD [auth L5] Focus chain SE [auth L5] Focus chain SF [auth L5] Focus chain SG [auth L5] Focus chain SH [auth L5] Focus chain SI [auth L5] Focus chain TA [auth L5] Focus chain TB [auth L5] Focus chain TC [auth L5] Focus chain TD [auth L5] Focus chain TE [auth L5] Focus chain TF [auth L5] Focus chain TG [auth L5] Focus chain TH [auth L5] Focus chain TI [auth L5] Focus chain UA [auth L5] Focus chain UB [auth L5] Focus chain UC [auth L5] Focus chain UD [auth L5] Focus chain UE [auth L5] Focus chain UF [auth L5] Focus chain UG [auth L5] Focus chain UH [auth L5] Focus chain UI [auth L5] Focus chain VA [auth L5] Focus chain VB [auth L5] Focus chain VC [auth L5] Focus chain VD [auth L5] Focus chain VE [auth L5] Focus chain VF [auth L5] Focus chain VG [auth L5] Focus chain VH [auth L5] Focus chain VI [auth L5] Focus chain WA [auth L5] Focus chain WB [auth L5] Focus chain WC [auth L5] Focus chain WD [auth L5] Focus chain WE [auth L5] Focus chain WF [auth L5] Focus chain WG [auth L5] Focus chain WH [auth L5] Focus chain WI [auth L5] Focus chain XA [auth L5] Focus chain XB [auth L5] Focus chain XC [auth L5] Focus chain XD [auth L5] Focus chain XE [auth L5] Focus chain XF [auth L5] Focus chain XG [auth L5] Focus chain XH [auth L5] Focus chain XI [auth L7] Focus chain YA [auth L5] Focus chain YB [auth L5] Focus chain YC [auth L5] Focus chain YD [auth L5] Focus chain YE [auth L5] Focus chain YF [auth L5] Focus chain YG [auth L5] Focus chain YH [auth L5] Focus chain YI [auth L7] Focus chain ZA [auth L5] Focus chain ZB [auth L5] Focus chain ZC [auth L5] Focus chain ZD [auth L5] Focus chain ZE [auth L5] Focus chain ZF [auth L5] Focus chain ZG [auth L5] Focus chain ZH [auth L5] Focus chain ZI [auth L7]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.87 Å
Aggregation State: CELL
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-04-16

Deposition Author(s):

Wei, Z.

Yong, X.

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2025-04-16
Type: Initial release

RCSB PDB Core Operations are funded by the U.S. National Science Foundation (DBI-2321666), the US Department of Energy (DE-SC0019749), and the National Cancer Institute, National Institute of Allergy and Infectious Diseases, and National Institute of General Medical Sciences of the National Institutes of Health under grant R01GM157729.

Prepare Data

Validate Data

Deposit Data

Help and Resources

.id_divider{ color: #ccc; padding: 0 10px 0 10px; } .extended_id_info{ color: #ccc; font-size: 18px; position: relative; top: -10px; left: 4px; } 8UJC | pdb_00008ujc

In situ human 60S ribosome

In situ human 60S ribosome

Entity ID: 1

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 5

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 6

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 7

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 8

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 9

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 10

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 11

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 12

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 13

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 14

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 15

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 16

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 17

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 18

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 19

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 20

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 21

UniProt & NIH Common Fund Data Resources

Entity Groups

Sequence Annotations

Entity ID: 22

8UJC | pdb_00008ujc
